Product Summary

The CS493264-CL is a multichannel audio decoder intended to supersede the CS4923/4/5/6/7/8/9 family as the leader of audio decoding in both the DVD, broadcast and receiver markets. The CS493264-CL will be split into parts tailored for each of these distinct market segments.

Parametrics

CS493264-CL absolute maximum ratings: (1)Input current, any pin except supplies Iin: ±10 mA; (2)Digital input voltage VIND: –0.3 to 3.63 V; (3)Storage temperature Tstg: –65 to 150℃.

Features

CS493264-CL features: (1)8 channel output, including dual zone output capability; (2)Dynamic Channel Remapability; (3)Supports up to 192 kHz Fs @ 24-bit throughput; (4)Increased memory/MIPs; (5)SRAM Interface for increased delay and buffer capability; (6)Dual-Precision Bass Manager; (7)Enhance your system functionality via firmware upgrades through the Crystal WareTM Software Licensing Program.

Diagrams

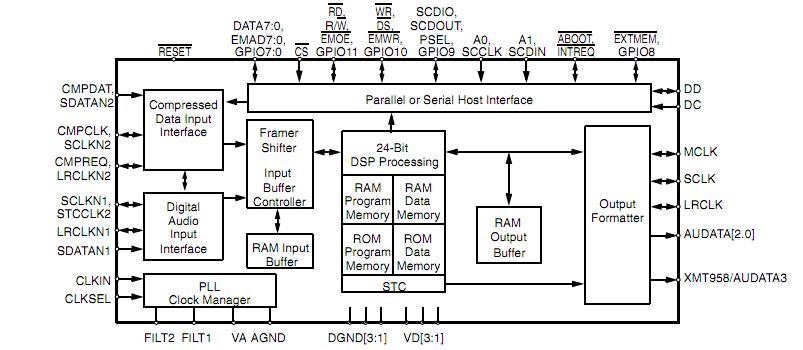

CS493264-CL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

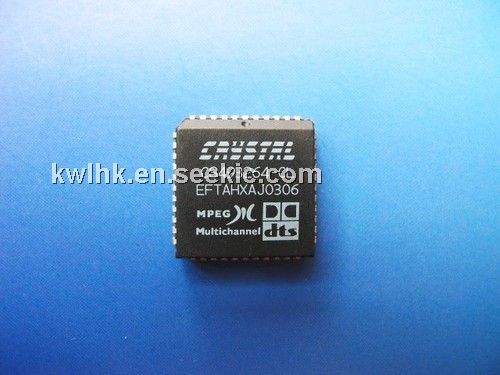

CS493264-CLZ
CS493264-CLZ

Cirrus Logic

Audio DSPs IC Multi-Standard Audio Decoder

Data Sheet

Negotiable

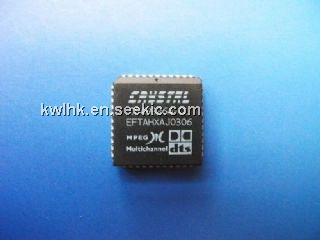

CS493264-CLZR
CS493264-CLZR

Cirrus Logic

Audio DSPs IC Multi-Standard Audio Decoder

Data Sheet

Negotiable
