Product Summary

The CY62137VLL-70BAI is a high-performance CMOS static RAM organized as 128K words by 16 bits. The CY62137VLL-70BAII device features advanced circuit design to provide ultra-low active current. This is ideal for providing More Battery Life (MoBL) in portable applications such as cellular telephones. The devices also has an automatic power-down feature that significantly reduces power consumption by 80% when addresses are not toggling. The device can also be put into standby mode reducing power consumption by more than 99% when deselected (CE HIGH or both BLE and BHE are HIGH). The input/output pins (I/O0 through I/O15) are placed in a high-impedance state when: deselected (CE HIGH), outputs are disabled (OE HIGH), both Byte High Enable and Byte Low Enable are disabled (BHE, BLE HIGH), or during a write operation (CE LOW, and WE LOW).

Parametrics

CY62137VLL-70BAI absolute maximum ratings: (1)storage temperature: –65°c to +150°c; (2)ambient temperature with power applied: –55°c to +125°c; (3)supply voltage to ground potential: –0.5v to +4.6v; (4)dc voltage applied to outputs: in high-z state[4]: –0.5v to vcc + 0.5v; dc input voltage[4]: –0.5v to vcc + 0.5v.; (5)output current into outputs (low): 20 ma; (6)static discharge voltage: > 2001v (per mil-std-883, method 3015); (7)latch-up current: > 200 ma.

Features

CY62137VLL-70BAI features: (1)High Speed: 55 ns; (2)Temperature Ranges: Industrial: –40°C to 85°C; Automotive: –40°C to 125°C.; (3)Wide voltage range: 2.7V – 3.6V; (4)Ultra-low active, standby power; (5)Easy memory expansion with CE and OE features; (6)TTL-compatible inputs and outputs; (7)Automatic power-down when deselected; (8)CMOS for optimum speed/power; (9)Available in Pb-free and non Pb-free standard 44-pin TSOP Type II package.

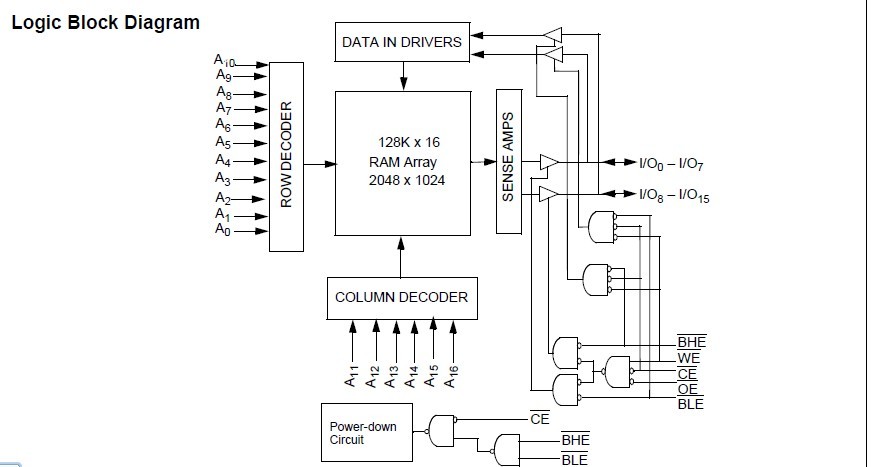

Diagrams

CY62137VLL-70BAI pin connection
