Product Summary
The CY7C1019BV33-10VC is a high-performance CMOS static RAM. The CY7C1019BV33-10VC is organized as 131,072 words by 8 bits. Easy memory expansion of the CY7C1019BV33-10VC is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable (OE), and three-state drivers. The CY7C1019BV33-10VC has an automatic power-down feature that significantly reduces power consumption when deselected. Writing to the CY7C1019BV33-10VC is accomplished by taking Chip Enable One (CE1) and Write Enable (WE) inputs LOW and Chip Enable Two (CE2) input HIGH. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins.
Parametrics
CY7C1019BV33-10VC absolute maximum ratings: (1)Storage Temperature: -65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to relative GND: –0.5 V to +7.0 V; (4)DC Voltage applied to outputs in high Z state: –0.5 V to VCC+0.5 V; (5)DC Input Voltage: –0.5 V to VCC+0.5 V; (6)Current into Outputs (LOW): 20 mA.
Features
CY7C1019BV33-10VC features: (1)High speed: 10 ns; (2)CMOS for optimum speed/power; (3)Center power/ground pinout; (4)Automatic power-down when deselected; (5)Easy memory expansion with CE and OE options; (6)Functionally equivalent to CY7C1019BV33-10VC.

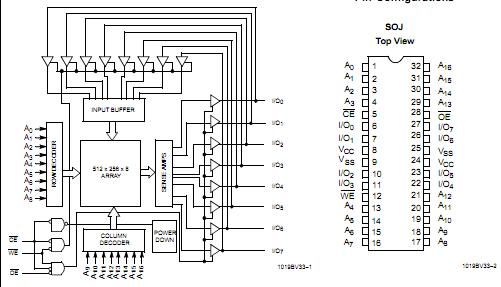

Diagrams
