CY7C185-15VC

CY7C185-15VC, high-performance CMOS Static RAM, –0.5 V to +7.0 V, 20 mA, SOJ, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.03 / Piece
500 ~ 1000 :	1.88 / Piece
1000 ~ 1500 :	1.70 / Piece

PartNumber:: CY7C185-15VC

Brand:: Cypress Semiconductor - Cypress | Pack: SOJ | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-27

From Other Seller

Part Number:CY7C185-15VC
US $1.70 - 2.03
Quantity:

piece

Product Summary

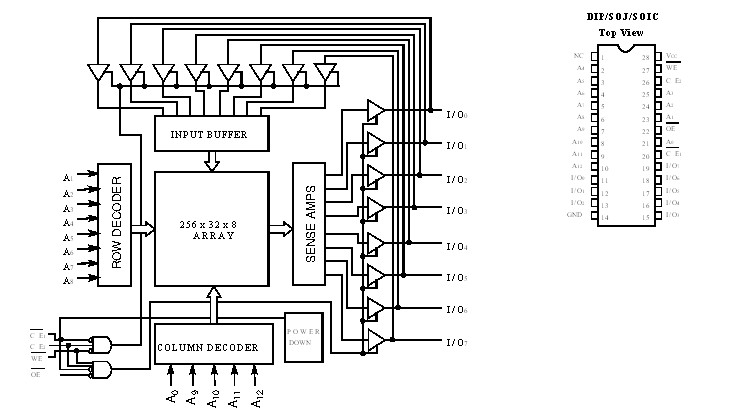

The CY7C185-15VC is a high-performance CMOS Static RAM. The CY7C185-15VC is organized as 8192 words by 8 bits. Easy memory expansion of the CY7C185-15VC is provided by an active LOW Chip Enable (CE), an active HIGH chip enable, an active LOW output enable and three-state drivers. The CY7C185-15VC has an automatic power-down feature, reducing the power consumption by 70% when deselected. The CY7C185-15VC is in a standard 300-mil-wide DIP, SOJ, or SOIC package.

Parametrics

CY7C185-15VC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to Relative GND[2]: –0.5 V to +7.0 V; (4)DC Voltage Applied to Outputs[2] in High Z State: –0.5 V to 7.0 V; (5)DC Input Voltage[2]: –0.5 V to 7.0 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.

Features

CY7C185-15VC features: (1)High speed: 15 ns; (2)Fast tdoe; (3)Low active power: 715 mW; (4)Low standby power: 220 mW; (5)CMOS for optimum speed/power; (5)TTL-compatible inputs and outputs; (6)Easy menory expansion with CE and OE options; (7)Automatic power-down when deselected.
