Product Summary

The CY7C186-20ZC is a high-performance CMOS Static RAM. The CY7C186-20ZC is organized as 8192 words by 8 bits. Easy memory expansion of the CY7C186-20ZC is provided by an active LOW Chip Enable (CE), an active HIGH chip enable, an active LOW output enable and three-state drivers. The CY7C186-20ZC has an automatic power-down feature, reducing the power consumption by 70% when deselected. The CY7C186-20ZC is in a standard 300-mil-wide DIP, SOJ, or SOIC package.

Parametrics

CY7C186-20ZC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to Relative GND[2]: –0.5 V to +7.0 V; (4)DC Voltage Applied to Outputs[2] in High Z State: –0.5 V to 7.0 V; (5)DC Input Voltage: –0.5 V to 7.0 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.

Features

CY7C186-20ZC features: (1)High speed: 20 ns; (2)Fast tdoe; (3)Low active power: 605 mW; (4)Low standby power: 110 mW; (5)CMOS for optimum speed/power; (5)TTL-compatible inputs and outputs; (6)Easy menory expansion with CE and OE options; (7)Automatic power-down when deselected.

Diagrams

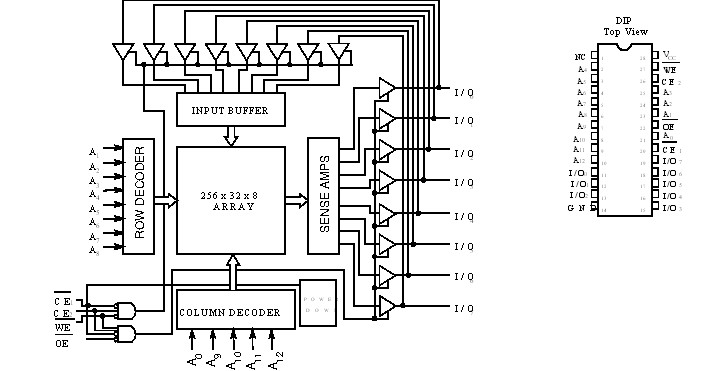

CY7C186-20ZC block diagram
