CY7C199C-12VC

CY7C199C-12VC, high–performance CMOS AsynchronousSRAM, –0.5 V to +7.0 V, 20 mA, SOJ, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.70~4.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	4.03 / Piece
500 ~ 1000 :	3.88 / Piece
1000 ~ 1500 :	3.70 / Piece

PartNumber:: CY7C199C-12VC

Brand:: Cypress Semiconductor - Cypress | Pack: SOJ | D/C: 02+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-28

From Other Seller

Part Number:CY7C199C-12VC
US $3.70 - 4.03
Quantity:

piece

Product Summary

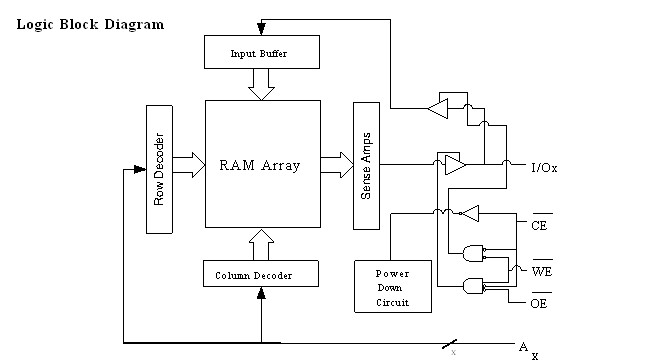

The CY7C199C-12VC is a high–performance CMOS AsynchronousSRAM. The CY7C199C-12VC is organized as 32K by 8 bits that supports anasynchronous memory interface. The CY7C199C-12VC features anautomatic power–down feature that significantly reducespower consumption when deselected.See the Truth Table in this datasheet for a completedescription of read and write modes. The CY7C199C-12VC is available in 28 DIP, 28 SOJ, and 28 TSOPI package(s).

Parametrics

CY7C199C-12VC absolute maximum ratings: (1)TSTG, Storage Temperature: –65 to +150 ℃; (2)TAMB, Ambient Temperature with Power Applied: –55 to +125 ℃VCC, Core Supply Voltage Relative to VSS: –0.5 to +7.0 V; (3)VIN, VOUT, DC Voltage Applied to any Pin Relative to VSS: –0.5 to VCC + 0.5 V; (4)IOUT, Output Short–Circuit Current: 20 mA; (5)VESD, Static Discharge Voltage: ＞2001 V; (6)ILU, Latch–up Current: ＞200 mA.

Features

CY7C199C-12VC features: (1)Fast access time: 12 ns, 15 ns, 20 ns, and 25 ns; (2)Wide voltage range: 5.0V ± 10% (4.5V to 5.5V); (3)CMOS for optimum speed/power; (4)TTL–compatible Inputs and Outputs; (5)Available in 28 DIP, 28 SOJ, and 28 TSOP I.; (6)2.0V Data Retention; (7)Low CMOS standby power; (8)Automated Power–down when deselected.
