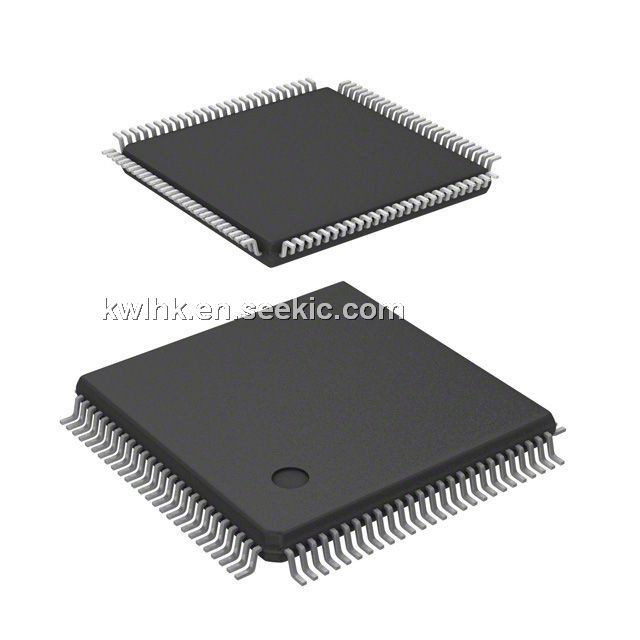

CY7C4211-15AC

CY7C4211-15AC, high-speed, low-power FIFO memory, –0.5 V to +7.0 V, 20 mA, QFP, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.42~2.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.75 / Piece
500 ~ 1000 :	2.60 / Piece
1000 ~ 1500 :	2.42 / Piece

PartNumber:: CY7C4211-15AC

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-28

From Other Seller

Part Number:CY7C4211-15AC
US $2.42 - 2.75
Quantity:

piece

Product Summary

The CY7C4211-15AC is a high-speed, low-power FIFO memory with clocked Read and Write interfaces. The CY7C4211-15AC is 9 bits wide. The CY7C4211-15AC is pin-compatible to IDT722X1. Programmable of the CY7C4211-15AC features include Almost Full/Almost Empty flags. These FIFOs of the CY7C4211-15AC provide solutions for a wide variety of data buffering needs, including high-speed data acquisition, multiprocessor inter-faces, and communications buffering. These FIFOs of the CY7C4211-15AC have 9-bit input and output ports that are controlled by separate clock and enable signals. The input portis of the CY7C4211-15AC controlled by a free-running clock (WCLK) and twoWrite-enable pins.

Parametrics

CY7C4211-15AC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage to ground potential: –0.5 V to +7.0 V; (4)DC Voltage Applied to Outputs in High Z State: –0.5 V to 7.0 V; (5)DC Input Voltage: –3.0 V to 7.0 V; (6)Output Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.

Features

CY7C4211-15AC features: (1)High-speed, low-power, First-In, First-Out (FIFO)memories: 64 × 9; (2)High-speed 100-MHz operation (10 ns Read/Write cycletime); (3)Low power (ICC = 35 mA); (4)Fully asynchronous and simultaneous Read and Write operation; (5)Empty, Full, and Programmable Almost Empty and Almost Full status flags; (6)TTL-compatible; (7)Expandable in width; (8)Output Enable (OE) pin; (9)Independent Read and Write enable pins; (10)Center power and ground pins for reduced noise; (11)Width-expansion capability; (12)Space saving 7 mm × 7 mm 32-pin TQFP; (13)32-pin PLCC; (14)Pin-compatible and functionally equivalent toIDT72421, 72201, 72211, 72221, 72231, and 72241.
