Product Summary

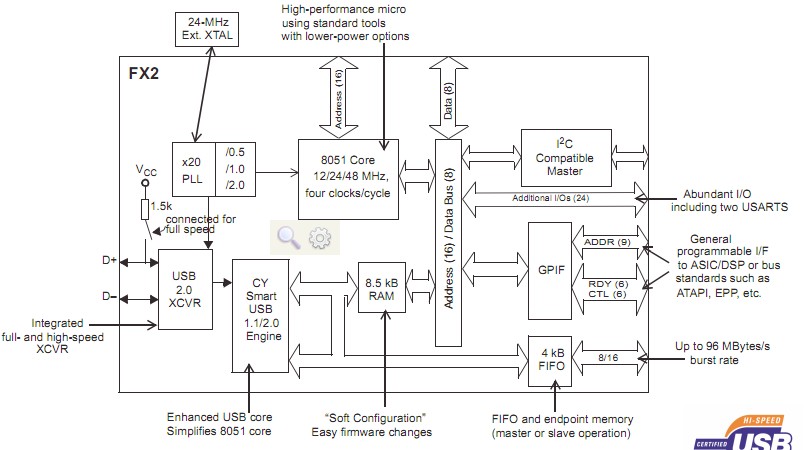

The CY7C68013-100AC is a USB Microcontroller. The CY7C68013-100AC is embedded in the FX2 family has 256 bytes of register RAM, an expanded interrupt system, three timer/counters, and two USARTs.8051 Clock Frequency FX2 has an on-chip oscillator circuit that uses an external 24-MHz (±100 ppm) crystal with the following characteristics: Parallel resonant, Fundamental mode, 500-μW drive level, 20–33 pF (5% tolerance) load capacitors. The applications of the CY7C68013-100AC include DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.

Parametrics

CY7C68013-100AC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Supplied: 0 to +70 ℃; (3)Supply Voltage to Ground Potential: –0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC+0.5V; (6)Power Dissipation: 936 mW; (7)Static Discharge Voltage: ＞2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports: 50 mA; (10)TA (Ambient Temperature Under Bias): 0 to +70 ℃; (11)Supply Voltage: +3.0V to +3.6V; (12)Ground Voltage: 0V; (13)FOSC: 24 MHz ± 100 ppm Parallel Resonant.

Features

CY7C68013-100AC features: (1)Single-chip integrated USB 2.0 Transceiver, SIE, and Enhanced 8051 Microprocessor; (2)Software: 8051 code runs from: Internal RAM, which is downloaded via USB; (3)Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints; (4)8- or 16-bit external data interface; (5)GPIF, Allows direct connection to most parallel interface; (6)Integrated, industry standard enhanced 8051: Up to 48-MHz clock rate; (7)Supports bus-powered applications by using renumeration; (8)3.3V operation; (9)Smart Serial Interface Engine; (10)Vectored USB interrupts; (11)Separate data buffers for the SETUP and DATA portions of a CONTROL transfer; (12)Integrated I2C-compatible controller, runs at 100 or 400 kHz; (13)48-MHz, 24-MHz, or 12-MHz 8051 operation; (14)Four integrated FIFOs; (15)Special autovectors for FIFO and GPIF interrupts; (16)Up to 40 general-purpose I/Os; (17)Four package options—128-pin TQFP, 100-pin TQFP, 56-pin QFN and 56-pin SSOP; (18)Four packages are defined for the family: 56 SSOP, 56 QFN, 100 TQFP, and 128 TQFP.
