Product Summary

The DA28F016SA100 is a 16-Mbit FlashFile memory. The DA28F016SA100 is the ideal choice fordesigning embedded direct-execute code and mass storage data/file flash memory systems. With innovative capabilities, low-power, extended temperature operation and high read/program performance, the DA28F016SA100 enables the design of truly mobile, high-performance communications and computing products. The DA28F016SA100 is the highest density, highest performance nonvolatile read/program solution for solid-statestorage applications.

Parametrics

DA28F016SA100 absolute maximum ratings: (1)Temperature under Bias: 0 to +80 ℃; (2)Storage Temperature: –65 to +125 ℃; (3)TA, Operating Temperature, Commercial: 1 to 70 ℃; (4)VCC, VCC with Respect to GND: 2 to 7.0 V; (5)VPP, VPP supply voltage with respect to GND: 2.3 to 14.0 V; (6)V, Voltage on Any Pin with Respect to GND: 2 to VCC+0.5 V; (7)I, Current into Any Non-Supply Pin: 5 to ±30 mA; (8)IOUT, Output Short Circuit Current: 4100 mA.

Features

DA28F016SA100 features: (1)User-Selectable 3.3V or 5V VCC; (2)User-Configurable × 8 or × 16 Operationn; (3)70 ns Maximum Access Timen; (4)28.6 MB/sec Burst Write Transfer Raten; (5)1 Million Typical Erase Cycles per Blockn; (6)56-Lead, 1.2 mm × 14 mm × 20 mm TSOP Packagen; (7)56-Lead, 1.8 mm × 16 mm × 23.7 mm SSOP Packagen; (8)Revolutionary Architecture; (9)Pipelined Command Execution; (10)Program during Erase; (11)1 mA Typical ICC in Static Moden; (12)1 μA Typical Deep Power-Downn; (13)32 Independently Lockable Blocksn; (14)State-of-the-Art 0.6 μm ETOX IV FlashTechnology.

Diagrams

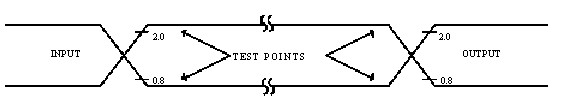

DA28F016SA100 block diagram
