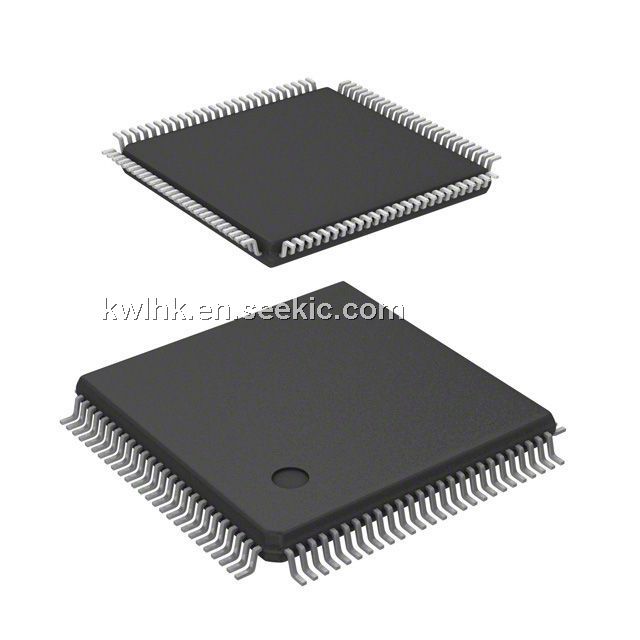

DSPB56367PV150

DSPB56367PV150, CMOS, 4.0 V, 16 mA, 10 ms, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~6.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	6.80 / Piece
500 ~ 1000 :	4.95 / Piece
1000 ~ 1500 :	2.80 / Piece

PartNumber:: DSPB56367PV150

Brand:: Fairchild Semiconductor - Fairchild | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:DSPB56367PV150
US $2.80 - 6.80
Quantity:

piece

Product Summary

The DSPB56367PV150 is a high-density CMOS device with 3.3 V inputs and outputs.The DSPB56367PV150 supports digital audio applications requiring sound field processing, acoustic equalization, and other digital audio algorithms. The DSPB56367PV150 uses the high performance, single-clock-per-cycle DSPB56367PV150 core family of programmable CMOS digital signal processors (DSPs) combined with the audio signal processing capability of the Freescale Semiconductor, Inc.

Parametrics

DSPB56367PV150 absolute maximum ratings: (1)Supply Voltage VCORE_VDD, VPLLD_VDD: -0.3 to + 1.6 V; (2)Supply Voltage VPLLP_VDD, VIO_VDD, VPLLA_VDD,: -0.3 to + 4.0 V; (3)Maximum CORE_VDD power supply ramp time4 Tr: 10 ms; (4)All 5.0V tolerant input voltages VIN GND: - 0.3 to 6V V; (5)Current drain per pin excluding VDD and GND(Except for pads listed below)I: 12 mA; (6)SCK_SCL ISCK: 16 mA; (7)TDO IJTAG: 24 ma; (8)Operating temperature range3 TJ: 80 LQFP = 105°C, 52 LQFP = 110 °C; (9)Storage temperature TSTG: -55 to +125 °C; (10)ESD protected voltage (Human Body Model): 2000 V; (11)ESD protected voltage (Machine Model): 200 V.

Features

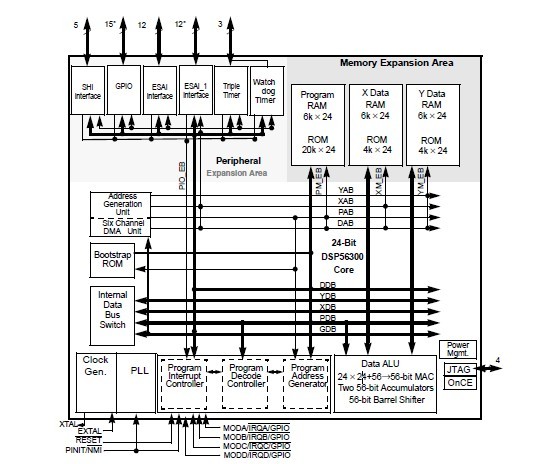

DSPB56367PV150 features: (1)150 Million Instructions Per Second (MIPS)with a 150 MHz clock at an internal logic supply (QVDDL)of 1.25 V; (2)Object Code Compatible with the 56K core; (3)Data ALU with a 24 x 24 bit multiplier-accumulator and a 56-bit barrel shifter;16 bit arithmetic support; (4)Program Control with position independent code support; (5)Six-channel DMA controller; (6)Internal address tracing support and OnCE for Hardware/Software debugging; (7)JTAG port, supporting boundary scan, compliant to IEEE 1149.1; (8)Very low-power CMOS design, fully static design with operating frequencies down to DC; (9)STOP and WAIT low-power standby modes.
