Product Summary

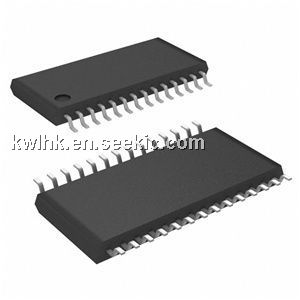

The EL1537IRE is a very low power dual channel differentiated amplifier designed for central office line driving for DMT ADSL solutions. The EL1537IRE features a high drive capability of 400mA while consuming only 7.5mA of supply current per amplifier from ±12V supplies. This driver achieves a typical distortion of less than -75dBc, at 1MHz into a 50Ω load. The EL1537IRE is available in the thermally-enhanced 28-pin HTSSOP package. Applications are (1)ADSL, ADSL2, ADSL2+ line drivers; (2)G.SHDSL, HDSL2 line drivers; (3)VDSL line drivers; (4)Video distribution amplifiers; (5)Video twisted-pair line drivers.
Features
EL1537IRE features: (1)Drives 400mA at 16VP-P on ±12V supplies; (2)44VP-P differential output drive into 100Ω; (3)37.2VP-P minimum differential output drive into 60Ω; (4)-75dBc typical driver output distortion driving 50Ω at 1MHz and 1/2-IS bias current; (5)Low quiescent current of 3.9mA per amplifier in 1/2-IS mode; (6)50MHz BW at AV = 10; (7)Power-down disable mode; (8)Pin-to-pin replacement for EL1527; (9)Pb-free plus anneal available (RoHS compliant).
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL1537IRE |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
|
EL1537IRE-T13 |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
|
EL1537IRE-T7 |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
|
EL1537IREZ |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
|
EL1537IREZ-T13 |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
|
EL1537IREZ-T7 |
|
IC LDRIVER DUAL ADSL2++ 28HTSSOP |
Data Sheet |
Negotiable |
|
||||
