F65545B2

Product Summary

The F65545B2 is a high performance flat panel / CRT controller. This IC is pin-to-pin compatible with the 65540 and adds a sophisticated graphics hardware engine for Bit Block Transfer (BitBLT), line drawing, hardware cursor, and other functions intensively used in Graphical User Interfaces (GUIs) such as Microsoft Windows. The F65545B2 supports a wide variety of monochrome and color Single-Panel, Single-Drive (SS) and Dual-Panel, Dual Drive (DD) passive STN and active matrix TFT / MIM LCD, EL, and plasma panels. It achieves superior performance through direct connection to system processor buses up to 32-bits in width.

Parametrics

F65545B2 absolute maximum ratings: (1)Power Dissipation: 1 W; (2)Supply Voltage: -0.5 to 7.0 V; (3)Input Voltage: 0.5 to VCC+0.5 V; (4)Output Voltage: -0.5 to VCC+0.5 V; (5)Operating Temperature (Ambient): -25 to 85 °C; (6)Storage Temperature: -40 to 125 °C.

Features

F65545B2 features: (1)Highly integrated design (flat panel / CRT VGA controller, RAMDAC, clock synthesizer); (2)Multiple Bus Architecture Integrated Interface; (3)Advanced frame buffer architecture uses available display memory, maximizing integration and minimizing chip count; (4)Integrated programmable linear address feature accelerates GUI performance; (5)High performance resulting from zero wait-state writes (write buffer) and minimum wait-state reads (internal asynchronous FIFO design); (6)Mixed 3.3V +/-0.3V / 5.0V +/-10% Operation Interface to CHIPS PC Video to display "live" video on flat panel displays; (7)Supports panel resolutions up to 1280 x 1024 resolution including 800x600 and 1024x768; (8)Supports non-interlaced CRT monitors with resolutions up to 1024 x 768 / 256 colors; (9)True-color and Hi-color display capability with flat panels and CRT monitors up to 640x480 resolution; (10)Flexible on-board Activity Timer facilitates ordered shut-down of the display system; (11)Power Sequencing control outputs regulate application of Bias voltage, +5V to the panel and +12 V to the inverter for backlight operation; (12)SMARTMAP intelligent color to gray scale conversion enhances text legibility; (13)Text enhancement feature improves white text contrast on flat panel displays; (14)Fully Compatible with IBM VGA; (15)EIAJ-standard 208-pin plastic flat pack.

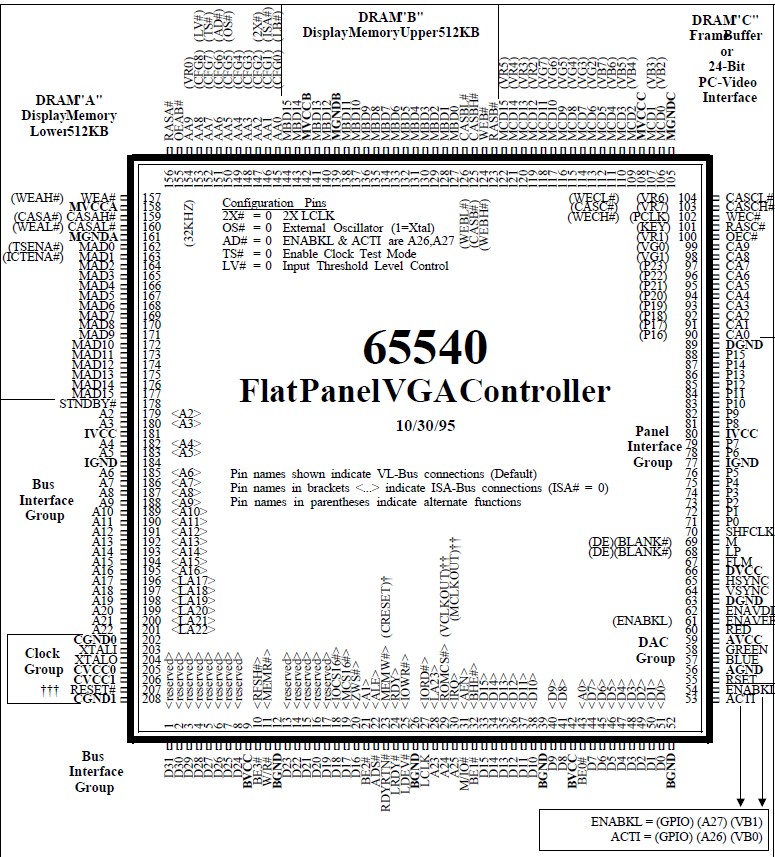

Diagrams
