Product Summary

The FB3206 is a HEXFET Power MOSFET. The applications of it are High Efficiency Synchronous Rectification in SMPS, Uninterruptible Power Supply, High Speed Power Switching, Hard Switched and High Frequency Circuits.

Parametrics

FB3206 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 210A; (2)Pulsed Drain Current: 840A; (3)Maximum Power Dissipation: 300W; (4)Linear Derating Factor: 2.0W/°C; (5)Gate-to-Source Voltage: ±20V; (6)Peak Diode Recovery: 5.0V/ns; (7)Operating Junction: -55 to +175°C; (8)Storage Temperature Range: -55 to +175°C.

Features

FB3206 features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.

Diagrams

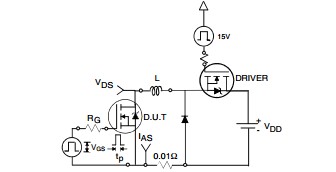

FB3206 block diagram
