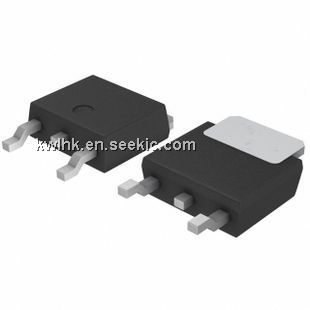

FDD6612A

FDD6612A, N-Channel MOSFET, 30 V, 36W, 30 A, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~2.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.90 / Piece
500 ~ 1000 :	1.75 / Piece
1000 ~ 1500 :	0.80 / Piece

PartNumber:: FDD6612A

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:FDD6612A
US $0.80 - 2.90
Quantity:

piece

Product Summary

The FDD6612A N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. The FDD6612A has been optimized for low gate charge, low RDS( ON) , fast switching speed and extremely low RDS(ON) in a small package. Applications are DC/DC converter, Motor Drives.

Parametrics

FDD6612A absolute maximum ratings: (1)VDSS Drain-Source Voltage: 30 V; (2)VGSS Gate-Source Voltage: ±20 V; (3)ID Continuous Drain Current @TC=25°C: 30 A, @TA=25°C: 9.5A, Pulsed: 60A; (4)Power Dissipation @TC=25°C: 36W, @TA=25°C: 2.8W, @TA=25°C: 1.3 W; (5)TJ, TSTG Operating and Storage Junction Temperature Range: -55 to +175 °C.

Features

FDD6612A features: (1)30 A, 30 V RDS(ON)= 20 mW @ VGS = 10 V RDS(ON)= 28 mW @ VGS = 4.5 V; (2)Low gate charge; (3)Fast Switching; (4)High performance trench technology for extremely low RDS(ON).
