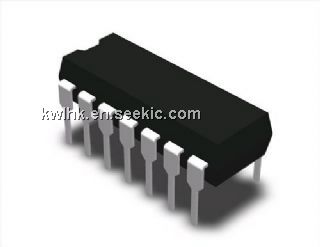

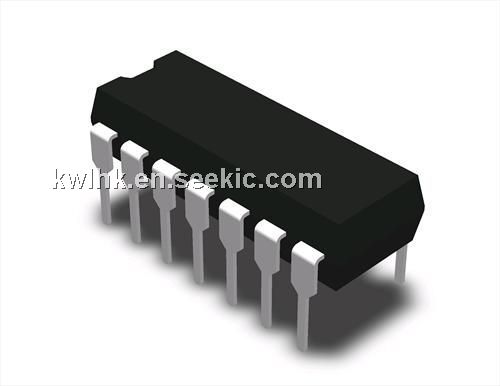

HA1-2540-5

HA1-2540-5, 400MHz, fast settling operational amplifier, 33mA, 35V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.65~4.87 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.87 / Piece
101 ~ 500 :	3.76 / Piece
501 ~ 1000 :	2.65 / Piece

PartNumber:: HA1-2540-5

Brand:: Harris Corporation - Harris | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-12

From Other Seller

Part Number:HA1-2540-5
US $2.65 - 4.87
Quantity:

piece

Product Summary

The HA1-2540-5 is a 400MHz, fast settling operational amplifier. Bipolar construction coupled with dielectric isolation allows this truly differential device to deliver outstanding performance in circuits where closed loop gain is 10 or greater. Additionally, the HA1-2540-5 has a drive capability of ±10V into a 1kΩ load. Other desirable characteristics include low input voltage noise, low offset voltage, and fast settling time. It can be used in (1)Pulse and Video Amplifiers; (2)Wideband Amplifiers; (3)High Speed Sample-Hold Circuits; (4)Fast, Precise D/A Converters.

Parametrics

HA1-2540-5 absolute maximum ratings: (1)Voltage Between V+ and V- Terminals: 35V; (2)Differential Input Voltage: 6V; (3)Output Current: 33mA RMS Continuous, 50mA PEAK; (4)Maximum Junction Temperature (Ceramic Package): 175°C; (5)Maximum Junction Temperature (Plastic Package): 150°C; (6)Storage Temperature: -65 to 150 °C; (7)Maximum Lead Temperature (Soldering 10s): 300°C.

Features

HA1-2540-5 features: (1)Very High Slew Rate: 400V/us; (2)Fast Settling Time: 140ns; (3)Wide Gain Bandwidth (AV . 10) : 400MHz; (4)Power Bandwidth: 6MHz; (5)Low Offset Voltage: 8mV; (6)Input Voltage Noise; (7)Output Voltage Swing: +/-10V; (8)Monolithic Bipolar Construction.
