Product Summary

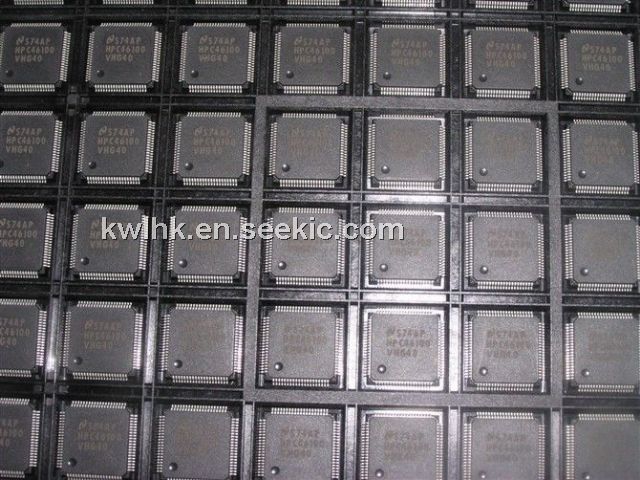

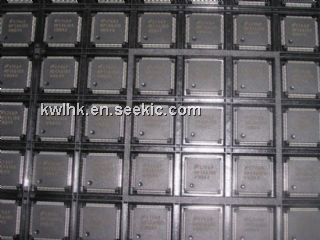

The HPC46100VHG40 is a High Performance microController. Each member of the family has a similar core CPU with unique memory, resources, and I/O configuration to suit specific applications. The HPC46100VHG40 is fabricated in National’s advanced microCMOS technology. This process combined with an advanced architecture provides fast, flexible I/O control, efficient data manipulation, high speed computation, and low power consumption.
Parametrics
HPC46100VHG40 absolute maximum ratings: (1)Total Allowable Source or Sink Current: 100 mA; (2)Storage Temperature Range: -65 to +150℃; (3)Lead Temperature (Soldering, 10 sec.): 300℃; (4)VCC with Respect to GND: -0.5V to +6.5V; (5)VREF with Respect to GND: VCC; (6)All Other Pins: (VCC +0.5V) to (GND -0.5V).
Features
HPC46100VHG40 features: (1)Multiply/Accumulate Unit for fast signed multiply or multiply-; (2)accumulate; (3)High speed 16 bit timers with PWM outputs or input capture logic; (4)4 Chip select output logic with programmable control; (5)8-channel, 8-bit A/D Converter; (6)1024 bytes of on-chip 0 wait state RAM; (7)FAST 100 ns for fastest instruction when using 40.0 MHz clock; (8)Very low power with two power save modes: IDLE and HALT; (9)UART full duplex, with a programmable baud rate generator and parity checking/detection; (10)MICROWIRE/PLUS serial I/O interface; (11)8 vectored interrupt sources; (12)Signed overflow flag for add and subtract instructions; (13)16 x 16 multiply and 32 x 16 divide; (14)16-bit architecture with byte and word operations; (15)64 kbytes of direct memory addressing; (16)8- or 16-bit wide external memory; (17)Program instructions can be executed from RAM; (18)Up to 31 general purpose I/O lines that are memory mapped; (19)WATCHDOG logic.

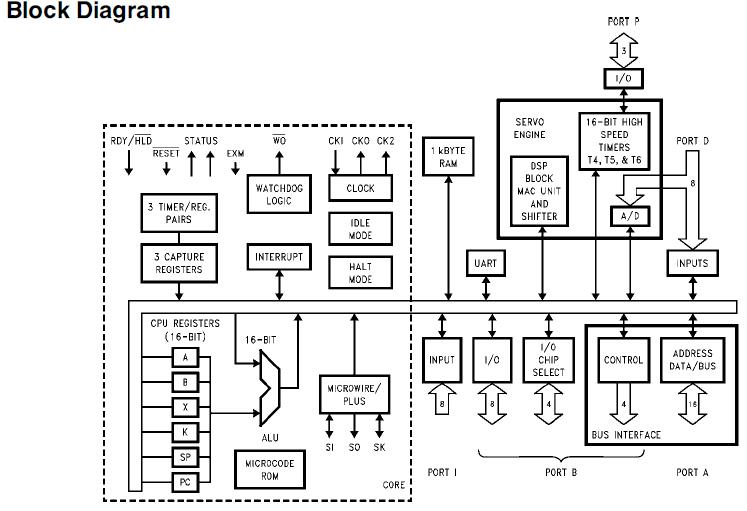

Diagrams
