Product Summary
The HSDL-3201#021 is a low-cost Infrared (IR) transceiver module from Agilent Technologies. It features the smallest footprint in the industry at 2.5 H x 8.0 W x 3.0 Dmm. Although the supply voltage can range from 2.7 V to 3.6 V, the LED drive current is internally compensated to a constant 32 mA to assure that link distances meet the IrDA Data 1.2 (low power) physical layer specifications. The applications of the HSDL-3201#021 include Mobile Telecom, Cellular Phones, Pagers, Smart Phones, Data Communication, PDAs, Portable Printers, Digital Imaging, Digital Cameras, Photo-Imaging Printers.
Parametrics
HSDL-3201#021 absolute maximum ratings: (1)Storage Temperature, TS: -40 to 100℃; (2)Operating Temperature, TA: -25 to 85℃; (3)LED Supply Voltage, VVLED: -0.5 to 7 V; (4)Supply Voltage, VCC: -0.5 to 7 V; (5)Input Voltage: TXD, SD, VI: 0 to VCC +0.5 V; (6)Output Voltage: RXD, VO: -0.5 to VCC +0.5 V.
Features
HSDL-3201#021 features: (1)Ultra Small Surface Mount Package; (2)Minimal Height: 2.5 mm; (3)Vcc from 2.7 to 3.6 Volts; (4)Withstands > 250 mVp-p Power Supply Ripple; (5)LED Supply Voltage can Range from 2.7 to 6.0 Volts; (6)Low Shutdown Current, 20 nA Typical; (7)Complete Shutdown, TxD, RxD, PIN Diode; (8)One Optional External Component; (9)Temperature Range: -25℃ to 85℃; (10)32 mA LED Drive Current; (11)Integrated EMI Shield; (12)IEC825-1 Class 1 Eye Safe; (13)Edge Detection Input, Prevents the LED from Long Turn on Time IrDA 1.2.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

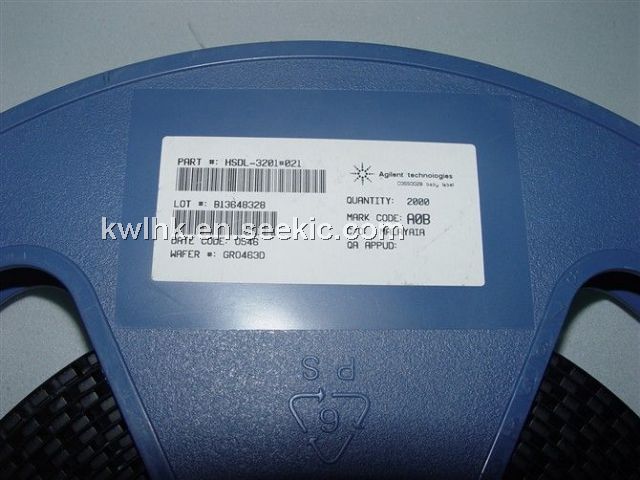

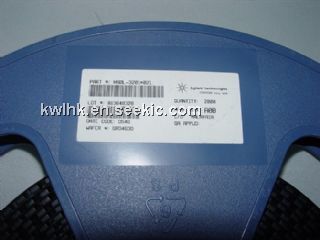

![]() HSDL-3201#021 |
![]() Lite-On |
![]() Infrared Transceivers IR Transceiver 115.2Kb/s |
![]() Data Sheet |
![]()
|
|
||||||||||||
