Product Summary
The ICS514AM is a LOCO PLL Clock Generator. The ICS514AM is the most cost effective way to generate a high quality, high frequency clock output from a 14.31818 MHz crystal or clock input. The name LOCO stands for LOw Cost Oscillator, as it is designed to replace crystal oscillators in many electronic systems. Stored in the ICS514AM ROM is the ability to generate 5 different output frequencies, allowing one chip to work in different speed processor systems. The ICS514AM also has a power down mode that turns off the clock outputs when both select pins are low. In this mode, the internal PLL is not running.
Parametrics
ICS514AM absolute maximum ratings: (1)VTERM(2)Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)VTERM(3)Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (3)VTERM(4)Terminal Voltage with Respect to GND: –0.5 to VCC +0.5 V; (4)TA Operating Temperature: –55 to +125 °C; (5)TBIAS Temperature Under Bias: –65 to +135 °C; (6)TSTG Storage Temperature: –65 to +150 °C; (7)IOUT DC Output Current: –60 to +60 mA.
Features
ICS514AM features: (1)Packaged as 8 pin SOIC; (2)ICS lowest cost PLL clock plus reference; (3)Produces common computer frequencies; (4)Input crystal frequency typically 14.3182 MHz; (5)Output clock frequencies up to 66.66 MHz; (6)Low jitter - 40 ps one sigma; (7)Compatible with all popular CPUs; (8)Duty cycle of 45/55; (9)Custom frequencies available; (10)Operating voltages of 3.0 to 5.5 V; (11)Power down mode turns off chip; (12)25mA drive capability at TTL levels; (13)Advanced, low power CMOS process.

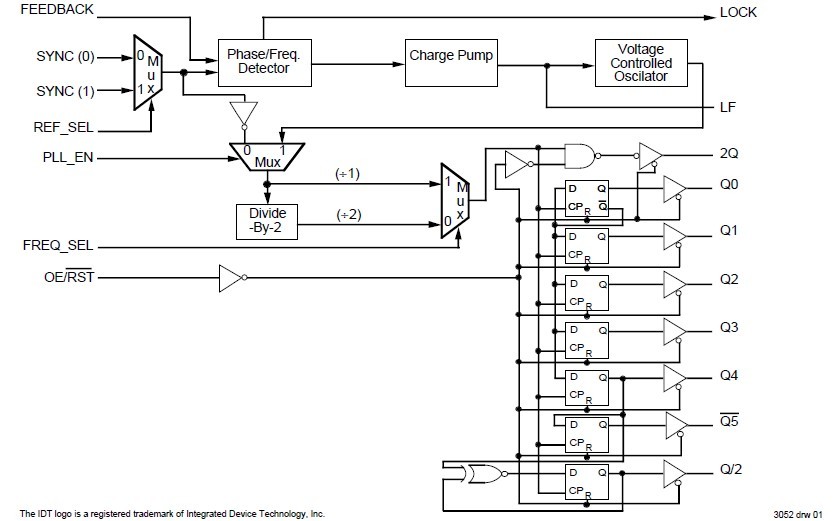

Diagrams
