Product Summary
The IDT74FCT16244TPA is a 16-Bit Buffer/Line Driver. The 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation. The IDT74FCT16244TPA is have a flow through pin organization, and shrink packaging to simplify board layout. All inputs are designed with hysteresis for improved noise margin. The three-state controls allow independent 4-bit, 8-bit or combined 16-bit operation.
Parametrics
IDT74FCT16244TPA absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)Terminal Voltage with Respect to GND: –0.5 to VCC +0.5 V; (3)Storage Temperature: –65 to +150 °C; (4)DC Output Current: –60 to +120 mA.
Features
IDT74FCT16244TPA features: (1)0.5 MICRON CMOS Technology; (2)High-speed, low-power CMOS replacement for ABT functions; (3)Typical tSK(o)(Output Skew)< 250ps; (4)Low input and output leakage £ 1mA (max.); (5)ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0); (6)Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack; (7)Extended commercial range of -40°C to +85°C.

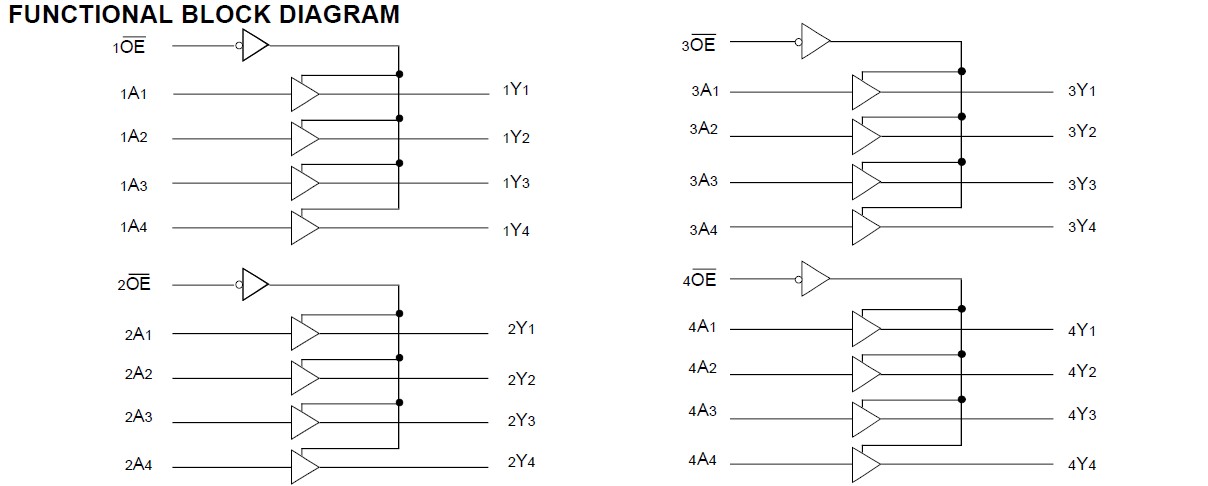

Diagrams
