Product Summary

The IDT74FCT162511ATPV is a 16-bit transceiver. It is using advanced dual metal CMOS technology. The high-speed, low-power transceiver IDT74FCT162511ATPV is ideal for synchronous communication between two busses (A and B). The Direction and Output Enable controls operate these devices as either two independent 8-bit transceivers or one 16-bit transceiver. The direction control pin (xDIR) controls the direction of data flow. The output enable pin (xOE) overrides the direction control and disables both ports. All inputs are designed with hysteresis for improved noise margin. The IDT74FCT162511ATPV is suited for very low noise, point-to-point driving where there is a single receiver, or a light lumped load (<100pF).

Parametrics

IDT74FCT162511ATPV absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)VTERM, Terminal Voltage with Respect to GND: –0.5 to VCC +0.5V; (3)TSTG, Storage Temperature: –65 to +150℃; (4)IOUT, DC Output Current: –60 to +120 mA.

Features

IDT74FCT162511ATPV features: (1)0.5 MICRON CMOS Technology; (2)High-speed, low-power CMOS replacement for ABT functions; (3)Typical tSK(o) (Output Skew) < 250ps; (4)Low input and output leakage ≤ 1μA (max.); (5)ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0); (6)Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack; (7)Extended commercial range of -40 to +85℃.

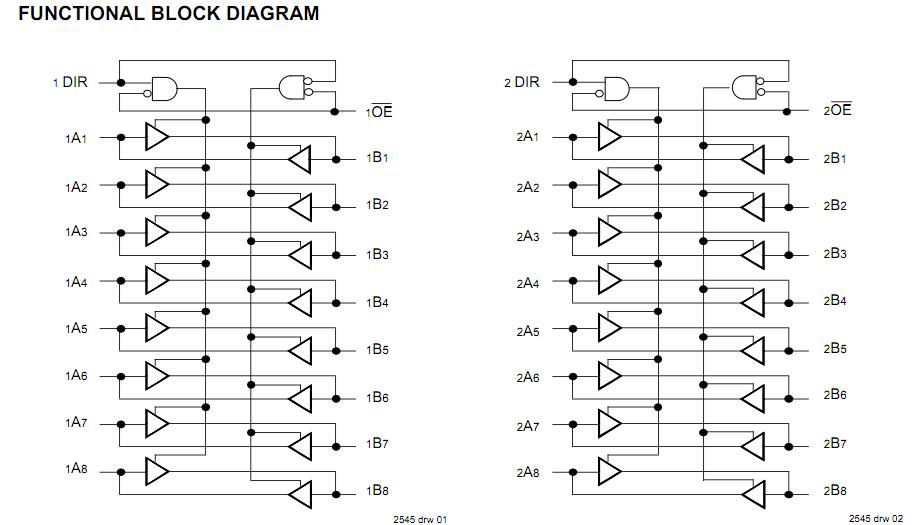

Diagrams

IDT74FCT162511ATPV pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT74FCT162511ATPVG
IDT74FCT162511ATPVG

IC REGISTERD TRCVR 16BIT 56SSOP
Data Sheet
0-260: $1.72
IDT74FCT162511ATPVG8
IDT74FCT162511ATPVG8

IC REGISTERD TRCVR 16BIT 56SSOP
Data Sheet
0-1000: $1.30
