Product Summary
The IMIC9851BYT is a low-EMI clock generator for Intel mobile 133-MHz/3 SO-DIMM chipset systems.
Parametrics
IMIC9851BYT absolute maximum ratings: (1)Maximum Input Voltage Relative to VSS: VSS – 0.3V; (2)Maximum Input Voltage Relative to VDD: VDD + 0.3V; (3)Storage Temperature: –65°C to + 150°C; (4)Operating Temperature: 0°C to +85°C; (5)Maximum ESD Protection: 2 KV; (6)Maximum Power Supply: 5.5V; (7)IIH1 Input High Current (@VIH =VDD): 20 μA; (8)Txs Crystal Startup time From stable 3.3V power supply: 40 μs.
Features
IMIC9851BYT features: (1)Meets Intels Mobile 133.3MHz Chipset; (2)Three CPU Clocks (66.6/100/133.3 MHz, 2.5V); (3)Six SDRAM Clocks, 1-DCLK (100/133.3 MHz, 3.3V); (4)Seven PCI Clocks (33MHz, 3.3V), one free running; (5)Two IOAPIC clocks, synchronous to CPU clock (33.3 MHz, 2.5V); (6)One REF Clock; (7)Two 48-MHz fixed non-SSCG clocks (USB and DOT).

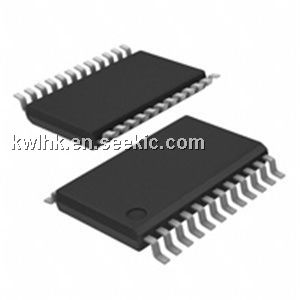

Diagrams
