Product Summary
The IMISM532AXBT is a Spectrum Spread Clock Modulator designed for the purpose of reducing the Electro- Magnetic Interference (EMI) found in today’s high speed digital systems. The IMISM532AXBT is well suited for a wide range of digital system applications that require a reduction of radiated energy. This unwanted radiated energy is usually found in the odd harmonics of digital system clocks. By modulating the frequency of the digital clock, measured EMI at the fundamental and harmonic frequencies is greatly reduced. The applications of the IMISM532AXBT include Desktop/Laptop Computer, Modems, Scanners, Printers, Copiers, Fax Machines, MFP’s, Disk and CD-ROM Drives, Automotive and EmbeddedSystems, Networking, LAN/WAN, Digital Cameras, Games, LCD displays.
Parametrics
IMISM532AXBT absolute maximum ratings: (1)Supply Voltage, VDD: 0 to 6.0 VDC; (2)Input, relative to VSS, VIRvss: -0.3 to VDD +0.3 VDC; (3)Output, relative to VSS, VORvss: -0.3 to VDD +0.3 VDC; (4)AVDD relative to DVDD, DVpp: -100 to +100 mv; (5)AVSS relative to DVSS, DVss: -100 to +100 mv; (6)Temperature, Operating, TOP: 0 to +70℃; (7)Temperature, Storage, TST: -65 to +150℃.
Features
IMISM532AXBT features: (1)Reduces Systemic EMI; (2)Modulates external source clock; (3)3 - 5 Volt power supply; (4)14 to 120 MHz.operating frequency range; (5)Output is multiplied or divided by 1, 2 or 4; (6)Digitally controlled modulation; (7)TTL/CMOS compatible outputs; (8)Fout modulation centered around reference; (9)Compliant with all major CISC, RISC and DSP processors; (10)Low short term jitter; (11)Synchronous output enable; (12)Power down mode for low current operation; (13)Available in 16 pin SOIC package.

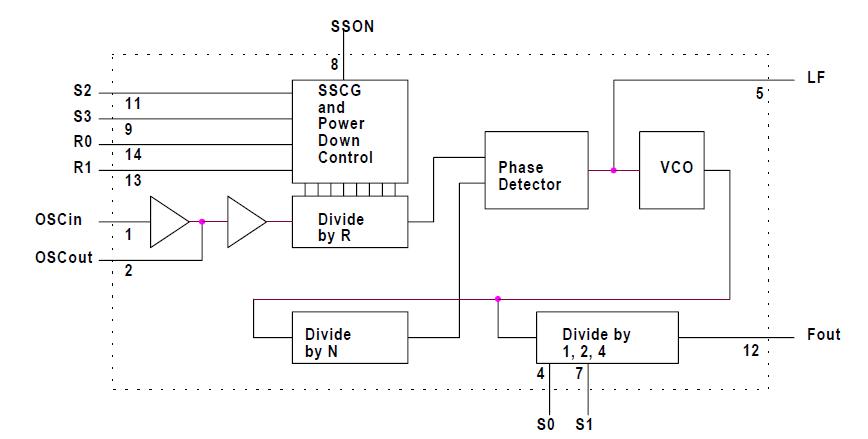

Diagrams
