Product Summary
The IR3E3074 is an easy-to-use, fully integrated and highly efficient DC/DC synchronous Buck regulator. The IR3E3074 is a versatile regulator which offers programmability of start up time, switching frequency and current limit while operating in wide input and output voltage range.
Parametrics
IR3E3074 absolute maximum ratings: (1)Vin: -0.3V to 25V; (2)Vcc: -0.3V to 8V; (3)Boot: -0.3V to 33V; (4)SW: -0.3V to 25V(DC), -4V to 25V(AC, 100ns); (5)Boot to SW: -0.3V to Vcc+0.3V; (6)OCSet: -0.3V to 30V, 30mA; (7)Input / output Pins: -0.3V to Vcc+0.3V; (8)PGND to GND: -0.3V to +0.3V; (9)Storage Temperature Range: -55℃ to 150℃; (10)Junction Temperature Range: -40℃ to 150℃; (11)ESD Classification: JEDEC Class 1C; (12)Moisture sensitivity level: JEDEC Level 3@260℃.
Features
IR3E3074 features: (1)Wide Input Voltage Range 1.5V to 21V; (2)Wide Output Voltage Range 0.7V to 0.9*Vin; (3)Continuous 3A Load Capability; (4)Integrated Bootstrap-diode; (5)High Bandwidth E/A for excellent transient performance; (6)Programmable Switching Frequency up to 1.2MHz; (7)Programmable Over Current Protection; (8)PGood output; (9)Hiccup Current Limit; (10)Precision Reference Voltage (0.7V, +/-1%); (11)Programmable Soft-Start.

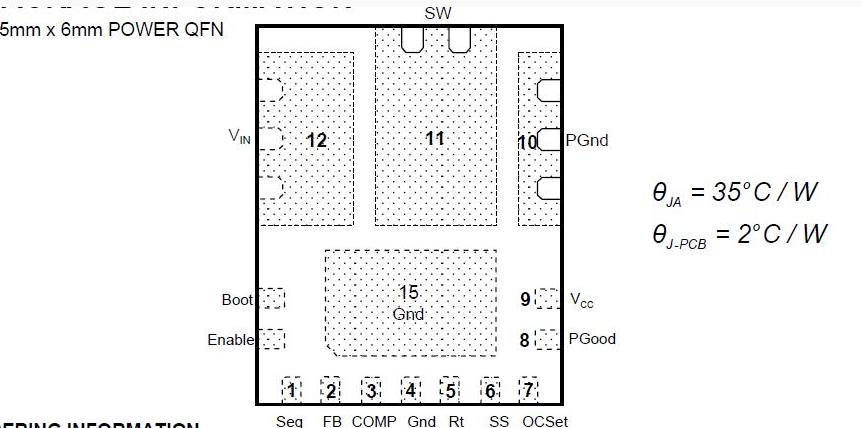

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

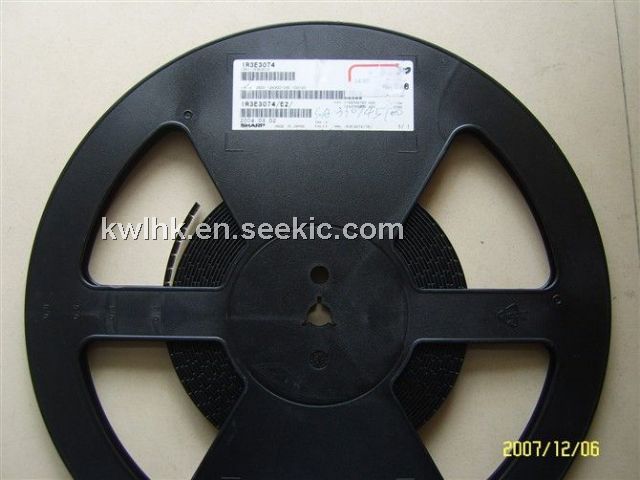

![]() IR3E3074 |
![]() |
