Product Summary

The IRFB4127PBF is a HEXFET Power MOSFET. The applications of it are High Efficiency Synchronous Rectification in SMPS, Uninterruptible Power Supply, High Speed Power Switching, Hard Switched and High Frequency Circuits.

Parametrics

IRFB4127PBF absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 76V; (2)ID @ TC = 100°C Continuous Drain Current, VGS @ 10V: 54 A; (3)IDM Pulsed Drain Current: 300A; (4)PD @TC = 25°C Maximum Power Dissipation: 375 W; (5)Linear Derating Factor: 2.5W/°C; (6)VGS Gate-to-Source Voltage: ±20V; (7)dv/dt Peak Diode Recovery: 57V/ns; (8)TJ Operating Junction and TSTG Storage Temperature Range: -55 to +175°C.

Features

IRFB4127PBF features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.

Diagrams

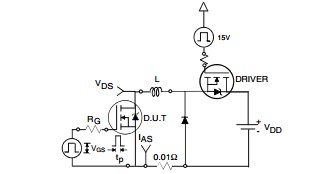

IRFB4127PBF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFB4127PBF
IRFB4127PBF
International Rectifier
MOSFET MOSFT 200V 76A 20mOhm 100nC Qg
Data Sheet
0-1: $2.51
1-25: $1.72
25-100: $1.28
100-250: $1.22
