Product Summary

The ISL3984IR96 is a 2.4GHz monolithic SiGe Power Amplifier designed to operate in the ISM Band. It features two low voltage single supply stages. Cascaded, the ISL3984IR96 delivers 18dBm (Typ) output power for the typical DSSS signal (ACPR, 1st Side Lobe < -30dBc, 2nd Side Lobe < -50dBc). In addition, the device includes a 2.4GHz detector which is accurate over a 15dB dynamic range within (±)1dB. Therefore, an accurate ALC function can be implemented. The applications of the ISL3984IR96 include IEEE802.11 1, 2 or 5.5Mbps Standard, Systems Targeting IEEE802.11b, 11Mbps Standard, Wireless Local Area Networks (WLAN), PCMCIA Wireless Transceivers, ISM Systems Including Automatic Level Control (ALC), TDMA Packet Protocol Radios.

Parametrics

ISL3984IR96 absolute maximum ratings: (1)Supply Voltage: 4V; (2)Voltage on Any Other Pin: -0.3 to VCC +0.3V; (3)VCC to VCC Decouple: -0.3 to +0.3V; (4)Any GND to GND: -0.3 to +0.3V; (5)Temperature Range: -40 to 85℃; (6)Supply Voltage Range: 2.7V to 3.6V.

Features

ISL3984IR96 features: (1)Single Supply: 2.7V to 3.6V; (2)Output Power: 18dBm (Typ) at ACPR, DSSS, 1st Side Lobe < -30dBc, 2nd Side Lobe < -50dBc; (3)Power Gain: 30dB (Typ); (4)Detector Linear Input Power Range: 15dB; (5)Detector Accuracy: ±1dB.

Diagrams

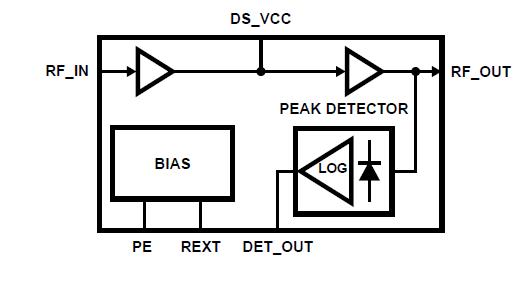

ISL3984IR96 block diagram
