ISL43L220IRZ-T

ISL43L220IRZ-T, single-pole/double-throw (SPDT) analog switch, 7V, 500mA, 0.3μW, DFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~5.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	5.20 / Piece
500 ~ 1000 :	4.60 / Piece
1000 ~ 1500 :	3.50 / Piece

PartNumber:: ISL43L220IRZ-T

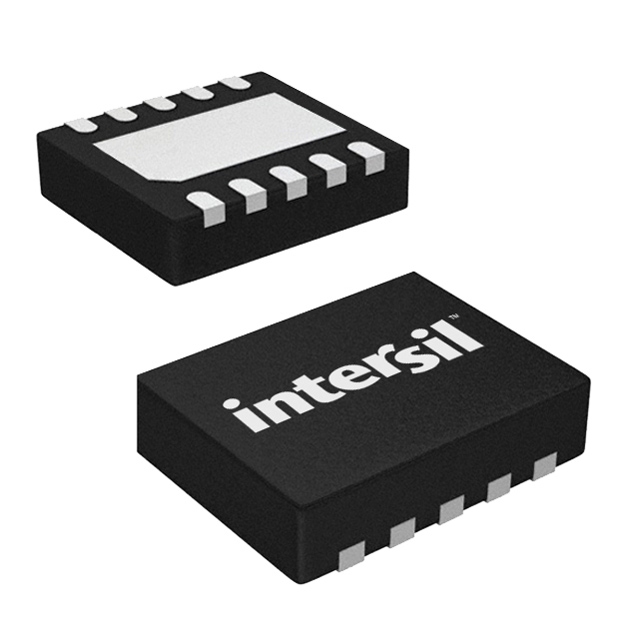

Brand:: Intersil Corporation - Intersil | Pack: DFN | D/C: 09+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:ISL43L220IRZ-T
US $3.50 - 5.20
Quantity:

piece

Product Summary

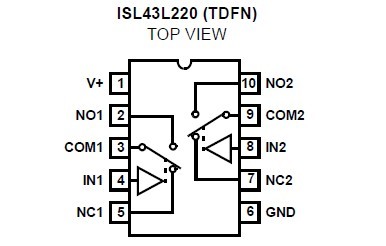

The ISL43L220IRZ-T is a low ON-resistance, low voltage, bidirectional, dual single-pole/double-throw (SPDT) analog switch designed to operate from a single +1.1V to +4.5V supply. The ISL43L220IRZ-T is a committed dual single-pole/double-throw (SPDT) that consist of two normally open (NO) and two normally closed (NC) switches. Applications are (1)Battery powered, handheld, and portable equipment: Cellular/mobile phones, Pagers, Laptops, notebooks, palmtops; (2)Portable Test and Measurement; (3)Medical Equipment; (4)Audio and video switching.

Parametrics

ISL43L220IRZ-T absolute maximum ratings: (1)Supply Voltage (VIN): -0.3 to 7V; (2)Output Pin Voltage (VBAT): -0.3 to 5.5V; (3)Signal Input Voltage (TOEN, TIME, IREF, IMIN): -0.3 to 3.2V; (4)Output Pin Voltage (STATUS, FAULT): -0.3 to 7V; (5)Charge Current : 500mA; (6)ESD Rating Human Body Model: 1500V; (7)Machine Model: 150V; (8)Maximum Junction Temperature (Plastic Package): 150°C; (9)Maximum Storage Temperature Range: -65°C to 150°C; (10)Maximum Lead Temperature (Soldering 10s): 300°C.

Features

ISL43L220IRZ-T features: (1)Pb-Free Available as an Option (RoHS Compliant)(See Ordering Info); (2)ON Resistance (RON)V+ = +4.3V: 0.22Ω, V+ = +3.0V: 0.26Ω, V+ = +1.8V: 0.5Ω; (3)RON Matching Between Channels: 0.03Ω; (4)RON Flatness Across Signal Range: 0.03Ω; (5)Single Supply Operation: +1.1V to +4.5V; (6)Low Power Consumption (PD): <0.3μW; (7)Fast Switching Action (V+ = +4.3V)tON: 11ns, tOFF: 5ns; (8)Guaranteed Break-Before-Make; (9)1.8V Logic Compatible (+3V supply); (10)Available in 10 lead 3x3 thin DFN; (11)ESD HBM Rating: >9kV.
