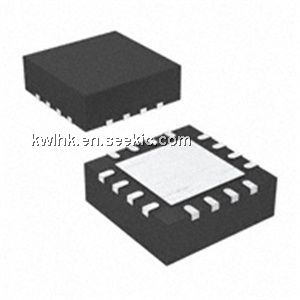

Product Summary
The ISL6568CRZ is a two-phase buck PWM controller.The ISL6568CRZ three-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. Outstanding features of the ISL6568CRZ include programmable VID codes compatible with Intel VRM9, VRM10, as well as AMD Hammer microprocessors.
Parametrics
ISL6568CRZ absolute maximum ratings: (1)Supply Voltage, VCC: -0.3V to +6V; (2)Supply Voltage, PVCC: -0.3V to +15V; (3)Absolute Boot Voltage, VBOOT: GND - 0.3V to GND + 36V; (4)Phase Voltage, VPHASE: GND - 0.3V to 15V (PVCC = 12); (5)Upper Gate Voltage, VUGATE: VPHASE - 0.3V to VBOOT + 0.3V; (6)Lower Gate Voltage, VLGATE: GND - 0.3V to PVCC + 0.3V; (7)Input, Output, or I/O Voltage: GND - 0.3V to VCC + 0.3V; (8)ESD Classification: Class I JEDEC STD.
Features
ISL6568CRZ features: (1)Integrated Multi-Phase Power Conversion: 1, 2, or 3-Phase Operation; (2)Accurate Load Line Programming: Uses Loss-Less Inductor DCR Current Sampling; (3)Variable Gate Drive Bias: 5V to 12V; (4)Overcurrent Protection; (5)Multi-tiered Overvoltage Protection; (6)Digital Soft-Start; (7)Selectable Operation Frequency up to 1.5MHz Per Phase; (8)Pb-Free Plus Anneal Available (RoHS Compliant).

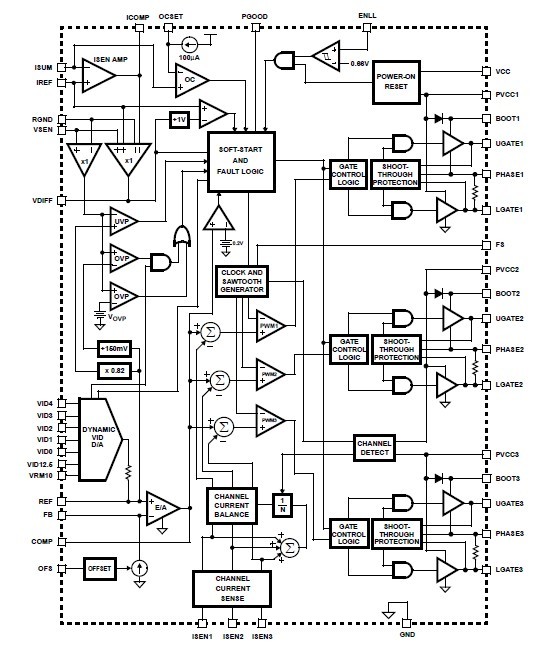

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ISL6568CRZ |
![]() Intersil |

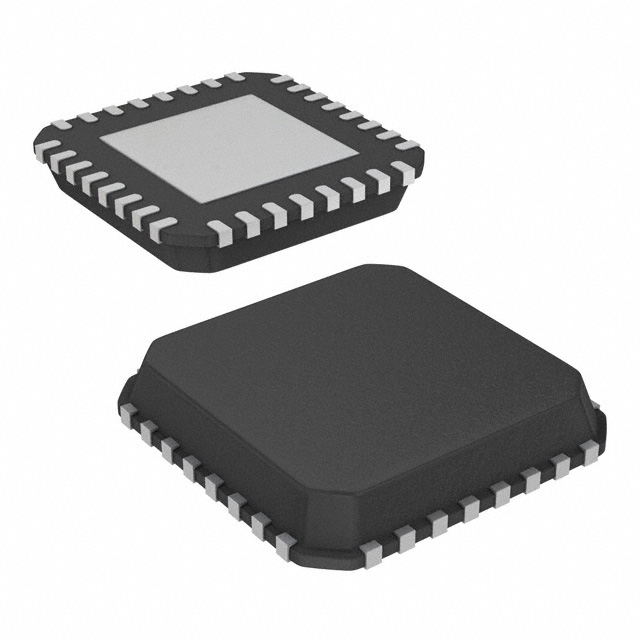

![]() IC CTRLR PWM BUCK 2PHASE 32-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ISL6568CRZA |
![]() Intersil |
![]() IC CTRLR PWM BUCK 2PHASE 32-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ISL6568CRZR5184 |
![]() |
![]() IC CTRLR PWM 2PHASE BUCK 32-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ISL6568CRZ-T |
![]() |
![]() IC CTLR PWM BUCK 2PHASE 32-QFN |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() ISL6568CRZ-TKR5184 |
![]() |
![]() IC CTRLR PWM 2PHASE BUCK 32-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ISL6568CRZA-T |
![]() Intersil |
![]() IC CTRLR PWM BUCK 2PHASE 32-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ISL6568CRZ-TR5184 |
![]() |
![]() IC CTRLR PWM 2PHASE BUCK 32-QFN |
![]() Data Sheet |
![]()
|
|
