Product Summary

The ITS716G is a smart high-side power switch. The N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. This device can be used in (1)compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads in industrial applications; (2)All types of resistive, inductive and capacitve loads; (3)Most suitable for loads with high inrush currents, so as lamps; (4)Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

ITS716G absolute maximum ratings: (1)Supply voltage: 43 V; (2)Supply voltage for full short circuit protection: 36 V; (3)Load current: self-limited A; (4)Junction temperature: +150°C; (5)Operating temperature range: -30 to +85°C; (6)Storage temperature range: –40 to +105 °C; (7)Power dissipation (DC): –3.6 W; (8)Current through input pin (DC): +/-0.3 mA.

Features

ITS716G features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground; (8)Short circuit protection; (9)Overload protection; (10)Current limitation; (11)Thermal shutdown; (12)Overvoltage protection (including load dump) with external resistor; (13)Reverse battery protection with external resistor; (14)Loss of ground and loss of Vbb protection; (15)Diagnostic feedback with open drain output; (16)Open load detection in OFF-state; (17)Feedback of thermal shutdown in ON-state.

Diagrams

ITS716G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

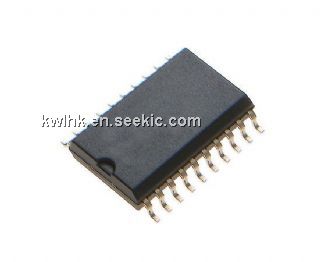

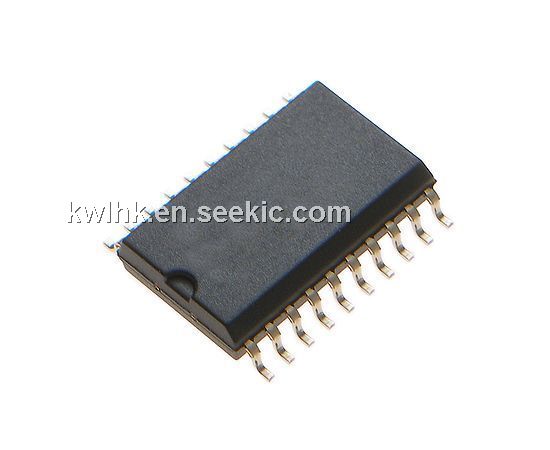

ITS716G
ITS716G
Infineon Technologies
Power Switch ICs - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP
Data Sheet
0-605: $1.35
605-1000: $1.13
1000-2000: $1.08
2000-5000: $1.03
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ITS711L1
ITS711L1
Infineon Technologies
Power Switch ICs - Power Distribution SMART 4 CHAN HI SIDE PWR SWITCH INDUST AP
Data Sheet
0-605: $1.63
605-1000: $1.38
1000-2000: $1.31
2000-5000: $1.25
ITS716G
ITS716G
Infineon Technologies
Power Switch ICs - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP
Data Sheet
0-605: $1.35
605-1000: $1.13
1000-2000: $1.08
2000-5000: $1.03
ITS724G
ITS724G
Infineon Technologies
Power Switch ICs - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP
Data Sheet
0-605: $1.48
605-1000: $1.25
1000-2000: $1.19
2000-5000: $1.14
