MAX186BCPP

Low-Power, 8-Channel, Serial 12-Bit ADC, DIP-20, Single +5V or ±5V Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~50.00

PartNumber:: MAX186BCPP

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-06

From Other Seller

Part Number:MAX186BCPP
US $0.10 - 50.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX186BCPP is a 12-bit data-acquisition system that combines an 8-channel multiplexer, high-bandwidth track/hold, and serial interface together with high conversion speed and ultra-low power consumption. The MAX186BCPP operates with a single +5V supply or dual ±5V supplies. The analog inputs are software configurable for unipolar/bipolar and single-ended/differential operation. The applications of the MAX186BCPP are Portable Data Logging, Data-Acquisition, High-Accuracy Process Control, Automatic Testing, Robotics, Battery-Powered Instruments, Medical Instruments.

Parametrics

MAX186BCPP absolute maximum ratings: (1)VDD to AGND:-0.3V to +6V; (2)VSS to AGND:+0.3V to -6V; (3)VDD to VSS:-0.3V to +12V; (4)AGND to DGND:-0.3V to +0.3V; (5)CH0–CH7 to AGND, DGND:(VSS - 0.3V) to (VDD + 0.3V); (6)CH0–CH7 Total Input Current:±20mA; (7)VREF to AGND:-0.3V to (VDD + 0.3V); (8)REFADJ to AGND:-0.3V to (VDD + 0.3V); (9)Digital Inputs to DGND:-0.3V to (VDD + 0.3V); (10)Digital Outputs to DGND:-0.3V to (VDD + 0.3V); (11)Digital Output Sink Current:25mA; (12)Continuous Power Dissipation:889mW; (13)Operating Temperature Ranges:0℃ to +70℃; (14)Storage Temperature Range:-60℃ to +150℃; (15)Lead Temperature (soldering, 10sec):+300℃.

Features

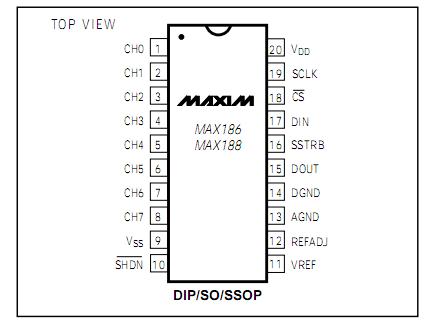

MAX186BCPP features: (1)8-Channel Single-Ended or 4-Channel Differential Inputs; (2)Single +5V or ±5V Operation; (3)Low Power: 1.5mA (operating mode)， 2μA (power-down mode); (4)Internal Track/Hold, 133kHz Sampling Rate; (5)Internal 4.096V Reference (MAX186); (6)SPI-, QSPI-, Microwire-, TMS320-Compatible 4-Wire Serial Interface; (7)Software-Configurable Unipolar or Bipolar Inputs; (8)20-Pin DIP, SO, SSOP Packages; (9)Evaluation Kit Available.
