Product Summary
The LC4256ZC-75TN100C is a In-System Programmable SuperFAST High Density PLD offers a SuperFAST CPLD solution. The family is a blend of Lattice’s two most popular architectures: the ispLSI 2000 and ispMACH 4A. Retaining the best of both families, the ispMACH 4000 architecture focuses on significant innovations to combine the highest performance with low power in a flexible CPLD family. The LC4256ZC-75TN100C combines high speed and low power with the flexibility needed for ease of design.
Parametrics
LC4256ZC-75TN100C absolute maximum ratings: (1)VCC, Supply Voltage for 1.8V Devices, ispMACH 4000C: 1.65 to 1.95 V; ispMACH 4000Z: 1.7 to 1.9 V; ispMACH 4000Z, Extended Functional Voltage Operation: 1.6 to 1.9 V, Supply Voltage for 2.5V Devices: 2.3 to 2.7 V, Supply Voltage for 3.3V Devices: 3.0 to 3.6 V; (2)Tj, Junction Temperature (Commercial): 0 to 90℃; (3)Tj, Junction Temperature (Industrial): -40 to 105℃; (4)Tj, Junction Temperature (Extended): -40 to 130℃.
Features
LC4256ZC-75TN100C features: (1)High Performance, fMAX = 400MHz maximum operating frequency; tPD= 2.5ns propagation delay; Up to four global clock pins with programmable clock polarity control; Up to 80 PTs per output; (2)Ease of Design, Enhanced macrocells with individual clock, reset, preset and clock enable controls; Up to four global OE controls; Individual local OE control per I/O pin; Excellent First-Time-Fit and refit; Fast path, SpeedLocking Path, and wide-PT path; Wide input gating (36 input logic blocks) for fast counters, state machines and address decoders; (3)Zero Power (ispMACH 4000Z) and Low Power (ispMACH 4000V/B/C), Typical static current 10μA (4032Z); Typical static current 1.3mA (4000C); 1.8V core low dynamic power; ispMACH 4000Z operational down to 1.6V VCC.

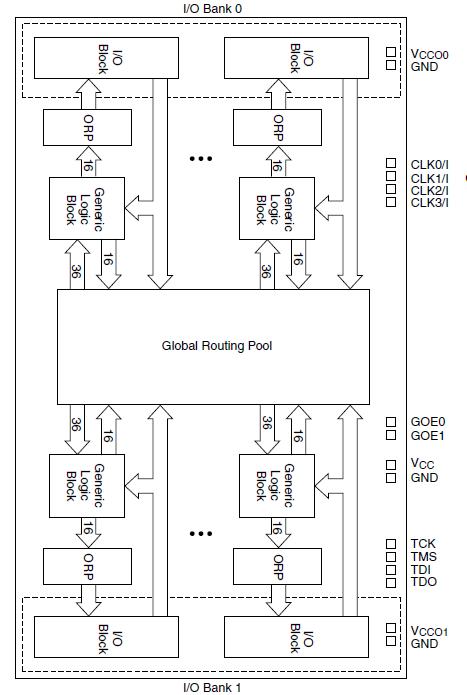

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

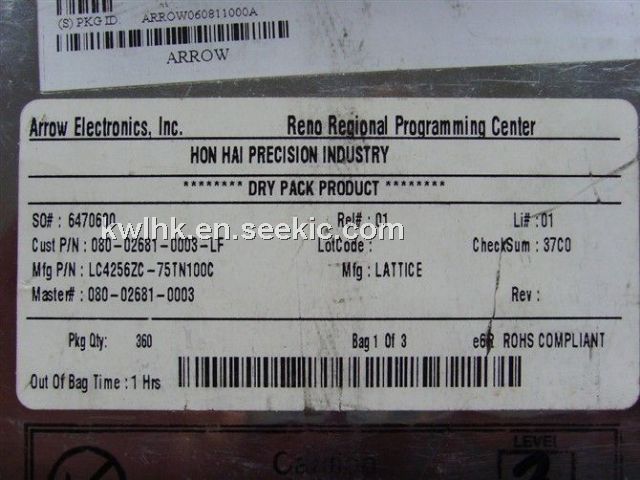

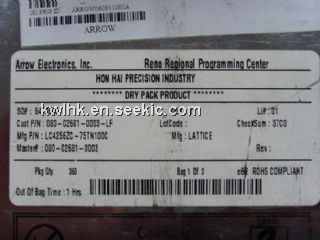

![]() LC4256ZC-75TN100C |
![]() Lattice |
![]() CPLD - Complex Programmable Logic Devices PROGRAMMABLE SUPER FAST HI DENSITY PLD |
![]() Data Sheet |
![]()
|
|
||||||||||
