Product Summary

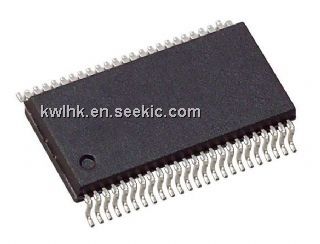

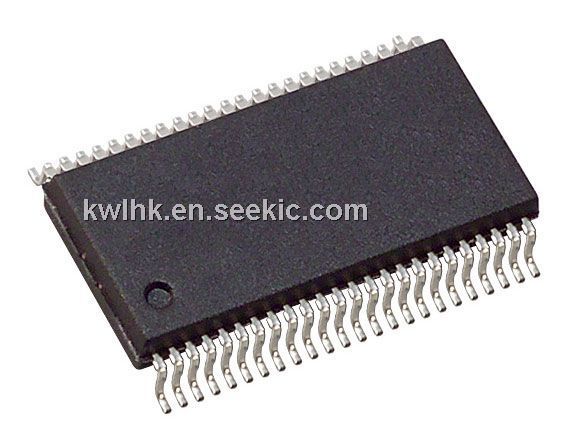

The LH28F128BFND-PWTL90 is a 128M (x16) flash memory. It provides high performance asynchronous page mode. It allows code execution directly from Flash, thus eliminating time consuming wait states. The product provides high performance asynchronous page mode. It allows code execution directly from Flash, thus eliminating time consuming wait states. The product can operate at VCC=2.7V-3.6V. Its low voltage operation capability greatly extends battery life for portable applications.
Parametrics
LH28F128BFND-PWTL90 absolute maximum ratings: (1)During Read, Erase and Program: 0°C to +70°C; (2)Storage Temperature During under Bias: -10°C to +80°C; (3)Storage Temperature During non Bias: -65°C to +125°C; (4)Voltage On Any Pin (except VCC): -0.5V to VCC+0.5V; (5)VCC Supply Voltage: -0.2V to +3.9V; (6)Output Short Circuit Current: 100mA.
Features
LH28F128BFND-PWTL90 features: (1)128M density with 16Bit I/O Interface; (2)2 Bank Enable (BE0#, BE1#) Control; (3)High Performance Reads; (4)90/35ns 8-Word Page Mode Low Power Operation; (5)2.7V Read and Write Operations; (6)Automatic Power Savings Mode Reduces ICCR in Static Mode; (7)Enhanced Code + Data Storage; (8)5us Typical Erase/Program Suspends; (9)OTP (One Time Program) Block; (10)4-Word Factory-Programmed Area; (11)4-Word User-Programmable Area; (12)High Performance Program with Page Buffer; (13)16-Word Page Buffer; (14)Operating Temperature 0°C to +70°C.

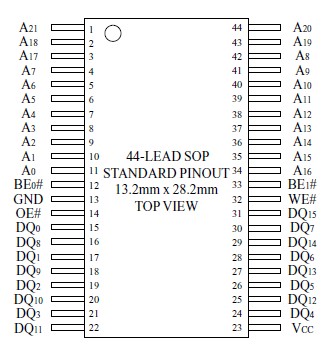

Diagrams
