Product Summary

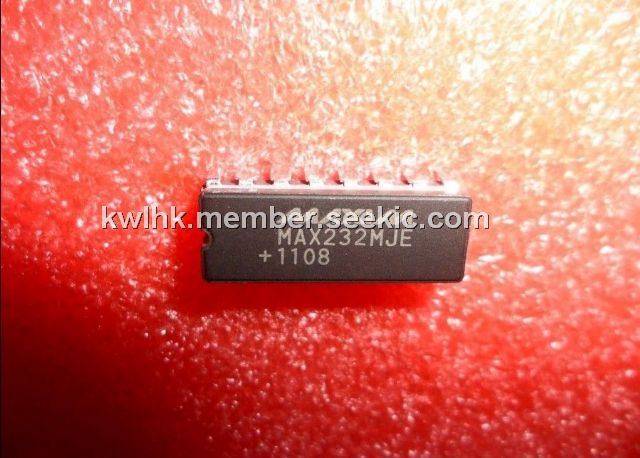

The MAX232MJE+ is a 5V-powered, multichannel RS-232 driver/receiver. The MAX232MJE+ line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The parts of the MAX232MJE+ are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232MJE+ uses no external components and are recommended for applications where printed circuit board space is critical.
Parametrics
MAX232MJE+ absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages; (5)TIN: -0.3V to (VCC - 0.3V); (6)RIN: ±30V; (7)TOUT: ±15V; (8)Output Voltages TOUT: ±15V; (9)ROUT: -0.3V to (VCC + 0.3V); (10)Driver/Receiver Output Short Circuited to GND: Continuous; (11)Continuous Power Dissipation (TA = +70℃): 800mW; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10s): +300℃.
Features
MAX232MJE+ features: (1)For Low-Voltage, Integrated ESD Applications; (2)For Low-Cost Applications.
Diagrams
 |
