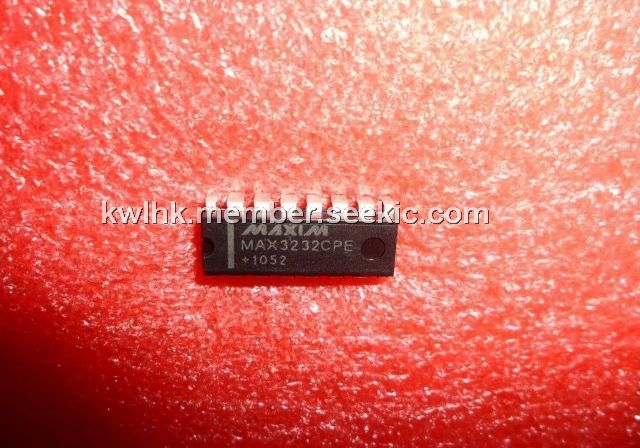

MAX3232CPE

3.0V to 5.5V, low-power, up to 1Mbps, true RS-232 transceiver, Low Supply Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~50.00

PartNumber:: MAX3232CPE

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:MAX3232CPE
US $0.10 - 50.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX3232CPE+ transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The device require only four small 0.1μF external chargepump capacitors. The MAX3232CPE+ is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3232CPE+ has 2 receivers and 2 drivers. The MAX3232CPE+ is pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively. The applications of it are Notebook, Subnotebook, and Palmtop Computers, High-Speed Modems, Battery-Powered Equipment, Hand-Held Equipment, Peripherals, Printers.

Parametrics

MAX3232CPE+ absolute Maximum Ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1): -0.3V to +7V; (3)V- (Note 1): +0.3V to -7V; (4)V+ + V- (Note 1): +13V; (5)Input Voltages T_IN, SHDN, EN: -0.3V to +6V; (6)Input Voltages T_IN, MBAUD: -0.3V to (VCC + 0.3V); (7)Input Voltages T_IN, R_IN: ±25V; (8)Output Voltages T_OUT: ±13.2V; (9)Output Voltages R_OUT: -0.3V to (VCC + 0.3V); (10)Short-Circuit Duration T_OUT: Continuous; (11)Continuous Power Dissipation (TA = +70℃) 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (12)Operating Temperature Ranges: 0℃ to +70℃; (13)Storage Temperature Range: -65℃ to +150℃; (14)Lead Temperature (soldering, 10sec): +300℃.

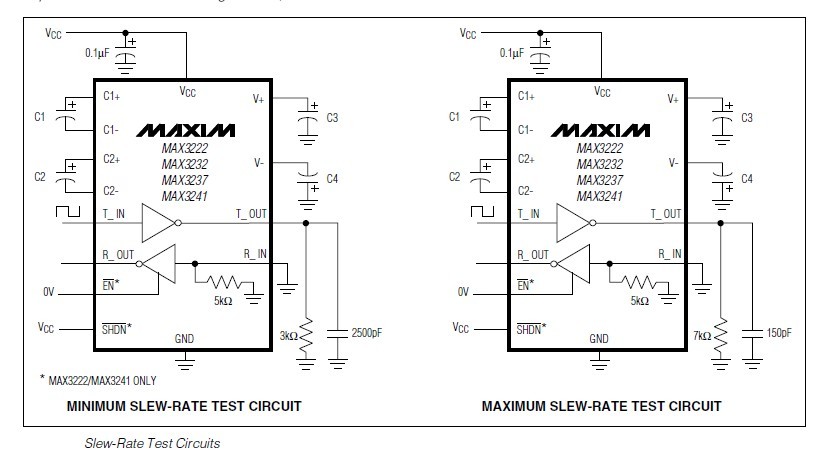

Features

MAX3232CPE+ features: (1)Low Supply Current: 300μA (MAX3222/MAX3232/MAX3241); (2)Guaranteed Data Rate: 120kbps (MAX3222/MAX3232/MAX3241); (3)1μA Low-Power Shutdown with Receivers Active(MAX3222/MAX3237/MAX3241); (4)Flow-Through Pinout (MAX3237); (5)Meets EIA/TIA-232 Specifications Down to 3.0V; (6)Guaranteed Mouse Driveability (MAX3241); (7)Pin Compatible with Industry-Standard MAX232 (MAX3232); (8)Guaranteed Slew Rate: 6V/μs (MAX3222/MAX3232/MAX3237/MAX3241).
