Product Summary

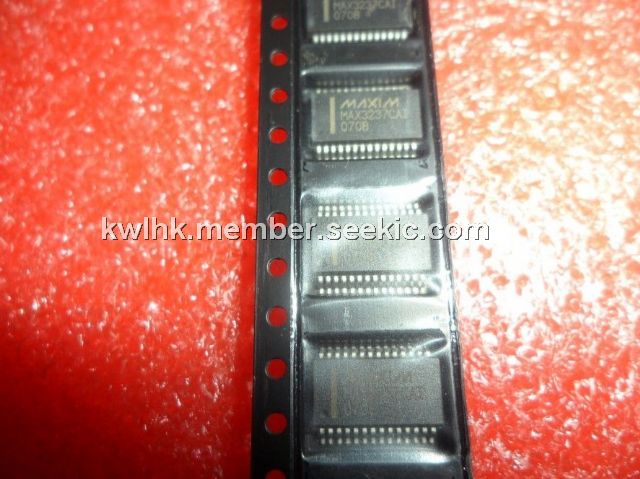

The MAX3237CAI is a True RS-232 Transceiver. It has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The MAX3237CAI requires only four small 0.1μF external charge-pump capacitors. It is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud operating mode, while maintaining RS-232 output levels. The MAX3237CAI is ideal for fast modem applications. The applications of it are Notebook, Subnotebook, and Palmtop Computers, High-Speed Modems, Battery-Powered Equipment, Hand-Held Equipment, Peripherals, Printers.
Parametrics
MAX3237CAI absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+:-0.3V to +7V; (3)V-:+0.3V to -7V; (4)V+ + V-:+13V; (5)Input Voltages: T_IN, SHDN, EN:-0.3V to +6V, MBAUD:-0.3V to (VCC + 0.3V), R_IN:±25V; (6)Output Voltages: T_OUT:±13.2V, R_OUT:-0.3V to (VCC + 0.3V); (7)Short-Circuit Duration:T_OUT:Continuous; (8)Operating Temperature Ranges:-40℃ to +85℃; (9)Storage Temperature Range:-65℃ to +150℃; (10)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX3237CAI features: (1)Low Supply Current:500μA; (2)Guaranteed Data Rate: 250kbps, 1Mbps; (3)1μA Low-Power Shutdown with Receivers Active; (4)Flow-Through Pinout; (5)Meets EIA/TIA-232 Specifications Down to 3.0V; (6)Guaranteed Slew Rate:6V/μs, 24V/μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3237CAI |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3237CAI+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3237CAI+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3237CAI-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
