Product Summary

The MAX5102 parallel-input, voltage-output, dual 8-bitdigital-to-analog converter (DAC) operates from a single+2.7V to +5.5V support and comes in a space-saving16-pin TSSOP package. Internal precision buffersswing Rail-to-Rail, and the reference input rangeincludes both ground and the positive rail. Both DACs share a normal reference input.
The MAX5102 has separate input latches for each of its DACs. Data is transferred to the input latches from acommon 8-bit input port. The DACs are individuallyselected through address input A0 and are updated bybringing WR low

Parametrics

The absolute maximum ratings of MAX5102AEUE are
(1)VDD to GND: -03V to +6V;
(2)D_, A0, WR, SHDN to GND: -03V to +6V;
(3)REF to GND: -03V to (VDD + 03V);
(4)OUT_ to GND: -03V to VDD;
(5)Maximum Current into Any Pin: ±50mA;
(6)Continuous Power Dissipation (TA = +70°C);
(7)16-Pin TSSOP (derate 57mW/°C above +70°C): 457mW;
(8)Operating Temperature RangeMAX5102_EUE: -40°C to +85°C;
(9)Maximum Junction Temperature: +150°C;
(10)Storage Temperature Range: -65°C to +150°C;
(11)Lead Temperature (soldering, 10sec): +300°C

Features

The features of MAX5102AEUE can be summarized as
(1)+2.7V to +5.5V Single-Supply Operation;
(2)Ultra-Low Supply Current0.2mA while Operating1nA in Shutdown Mode;
(3)Ultra-Small 16-Pin TSSOP Package;
(4)Ground to VDD Reference Input Range;
(5)Output Buffer Amplifiers Swing Rail-to-Rail;
(6)Power-On Reset Sets All Registers to Zero

Diagrams

<DIV><IMG alt="Maxim- MAX5102AEUE-SSOP" src="http://www.seekic.com/uploadfile/ic-mfg/201274201759614.jpg" border=0></DIV>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

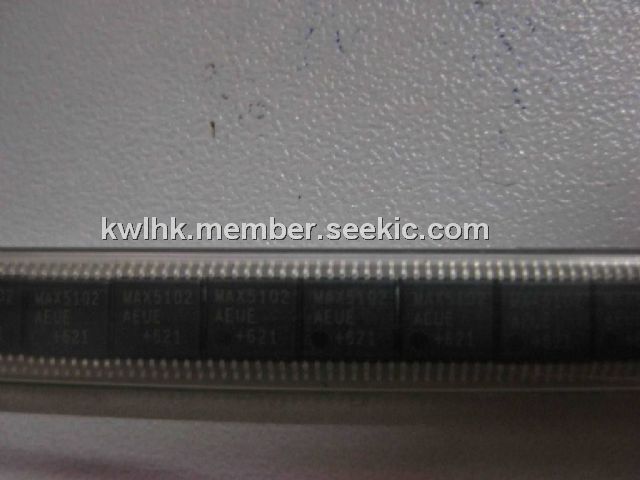

MAX5102AEUE
MAX5102AEUE
Maxim Integrated Products
DAC (D/A Converters)
Data Sheet
Negotiable
MAX5102AEUE+
MAX5102AEUE+
Maxim Integrated Products
DAC (D/A Converters) 8-Bit 2Ch Precision DAC
Data Sheet
0-1: $3.38
1-25: $2.68
25-50: $2.41
50-100: $2.24
MAX5102AEUE+T
MAX5102AEUE+T
Maxim Integrated Products
DAC (D/A Converters) 8-Bit 2Ch Precision DAC
Data Sheet
0-2080: $2.14
2080-2500: $2.14
MAX5102AEUE-T
MAX5102AEUE-T
Maxim Integrated Products
DAC (D/A Converters)
Data Sheet
Negotiable
