Product Summary

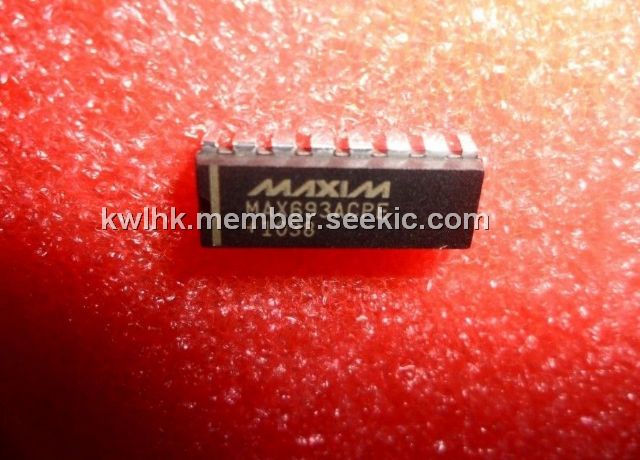

The MAX693ACPE is a Microprocessor Supervisory Circuit. It improves performance with 30uA supply current, 200ms typ reset active delay on power-up, and 6ns chip-enable propagation delay. Features of the MAX693ACPE include write protection of CMOS RAM or EEPROM, separate watchdog outputs, backup-battery switchover, and a RESET output that is valid with VCC down to 1V. The applications of the MAX693ACPE are Computers, Controllers, Intelligent Instruments, Automotive Systems, Critical μP Power Monitoring.
Parametrics
MAX693ACPE absolute maximum ratings: (1)Terminal voltage: VCC:-0.3V to +6V, VBATT:-0.3V to +6V, All Other Inputs:-0.3V to (VOUT + 0.3V); (2)Input Current:VCC Peak:1.0A. VCC Continuous:250mA, VBATT Peak:250mA, VBATT Continuous:25mA, GND, BATT ON:100mA, All Other Outputs:25mA; (3)Continuous Power Dissipation:842mW; (4)Operating Temperature Ranges:0℃ to +70℃; (5)Storage Temperature Range:-65℃ to +160℃; (6)Lead Temperature (soldering, 10s):+300℃.
Features
MAX693ACPE features: (1)200ms Power-OK/Reset Timeout Period; (2)1μA Standby Current, 30μA Operating Current; (3)On-Board Gating of Chip-Enable Signals, 10ns max Delay; (4)MaxCap or SuperCap Compatible; (5)Guaranteed RESET Assertion to VCC = +1V; (6)Voltage Monitor for Power-Fail or Low-Battery Warning; (7)Power-Fail Accuracy Guaranteed to ±2%; (8)Available in 16-Pin Narrow SO, Plastic DIP, and TSSOP Packages.

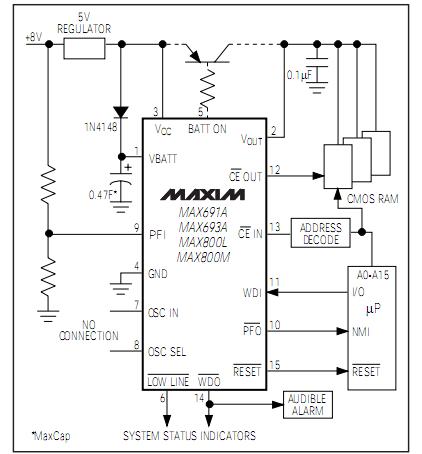

Diagrams
