Product Summary

The MB1502PF is a low power serial input pll synthesizer. The MB1502PF contains a 1.1GHz two modulus prescaler that can select of either 64/65 or 128/129 divide ratio, control generator, 16-bit shift register, 15-bit latch, programmable reference divider (binary 14-bit programmable reference counter), 1-bit switch counter, phase comparator with phase conversion function, charge pump, crystal oscillator, 19-bit shift register, 18-bit latch, programmable divider (binary 7-bit swallow counter and binary 11-bit programmable counter) and analog switch to speed up lock up time. It operates supply voltage of 5V typ. and achieves very low supply current of 8mA typ. realized through the use of Fujitsu Advanced Process Technology.

Parametrics

MB1502PF absolute maximum ratings: (1)Power Supply Voltage VCC: -0.5 to +7.0 V; (2)Power Supply Voltage VP: VCC to 10.0 V; (3)Output Voltage VOUT: -0.5 to VCC+0.5 V; (4)Open-drain Voltage VOOP: -0.5 to 0.8 V; (5)Output Current IOUT: ±10 mA; (6)Storage Temperature TSTG: -55 to +125℃.

Features

MB1502PF features: (1)High operating frequency: fIN MAX=1.1GHz (VIN MIN=10dBm); (2)Pulse swallow function: 64/65 or 128/129; (3)Low supply current: ICC=8mA typ.; (4)Serial input 18-bit programmable divider consisting of:; (5)Binary 7-bit swallow counter: 0 to 127; (6)Binary 11-bit programmable counter: 16 to 2047; (7)Serial input 15-bit programmable reference divider consisting of:; (8)Binary 14-bit programmable reference counter: 8 to 16383; (9)1-bit switch counter (SW) sets divide ratio of prescaler; (10)On-chip analog switch achieves fast lock up time; (11)2 types of phase detector output; (12)On-chip charge pump (Bipolar type); (13)Output for external charge pump; (14)Wide operating temperature.

Diagrams

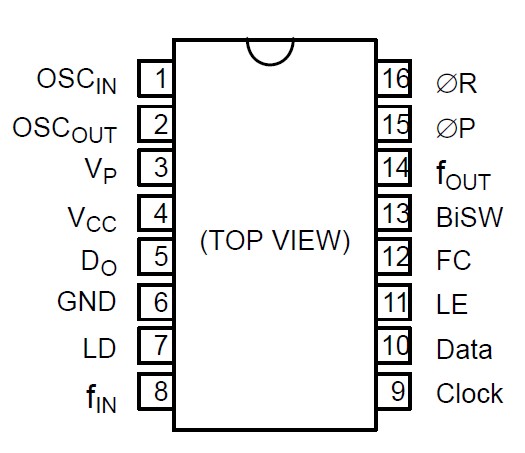

MB1502PF pin connection
