Product Summary
The MBRS140T3 is a Schottky Power Rectifier employs the use of the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Parametrics
MBRS140T3 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 40 V; (2)Working Peak Reverse Voltage, VRWM: 40 V; (3)DC Blocking Voltage, VR: 40 V; (4)Average Rectified Forward Current TL = 115℃, IF(AV): 1.0 A; (5)Non.Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz), IFSM: 40 A; (6)Operating Junction Temperature TJ: -65 to +125℃.
Features
MBRS140T3 features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)Very Low Forward Voltage Drop (0.55 V Max @ 1.0 A, TJ = 25℃); (5)Excellent Ability to Withstand Reverse Avalanche Energy Transients; (6)Guardring for Stress Protection; (7)Pb-Free Package is Available.

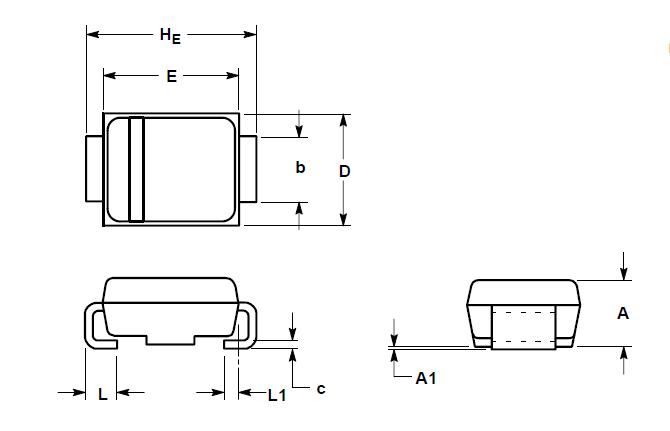

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

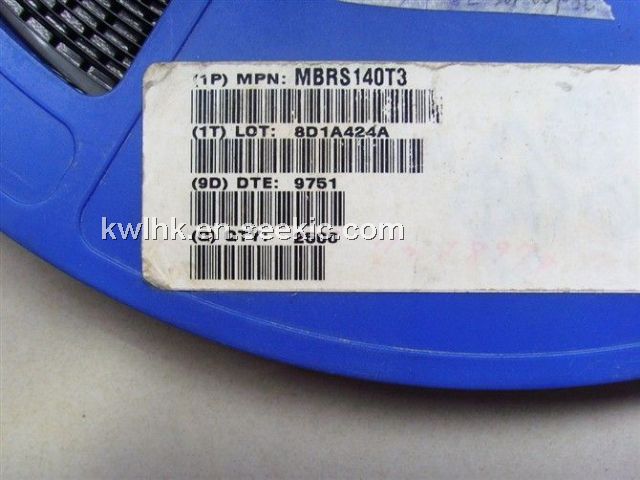

![]() MBRS140T3 |
![]() ON Semiconductor |
![]() Schottky (Diodes & Rectifiers) 1A 40V |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MBRS140T3G |
![]() ON Semiconductor |
![]() Schottky (Diodes & Rectifiers) 1A 40V |
![]() Data Sheet |
![]()
|
|
