Product Summary
The MC3302P is a Quad Single Supply Comparator. The comparator is designed for use in level detection, low level sensing and memory applications in consumer automotive and industrialelectronic applications.
Parametrics
MC3302P absolute maximum ratings: (1)Power Supply Voltage VCC: MC3302 +30 or ±15V; (2)Input Differential Voltage Range VIDR: 30V; (3)Input Common Mode Voltage Range VICMR: -0.3 to VCC Vdc; (4)Output Short Circuit to Ground, ISC: Continuous; (5)Power Dissipation @ TA = 25℃ PD, Plastic Package: 1.0 W; Derate above 25℃: 8.0 mW/℃; (6)Junction Temperature TJ: 150 ℃; (7)Operating Ambient Temperature Range: MC3302 -40 to +85℃; (8)Storage Temperature Range Tstg: -65 to +150 ℃.
Features
MC3302P features: (1)Single or Split Supply Operation; (2)Low Input Bias Current: 25 nA (Typ); (3)Low Input Offset Current: .0 nA (Typ); (4)Low Input Offset Voltage: .0 mV (Typ) LM139A Series; (5)Input Common Mode Voltage Range to Gnd; (6)Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; (7)TTL and CMOS Compatible; (8)ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

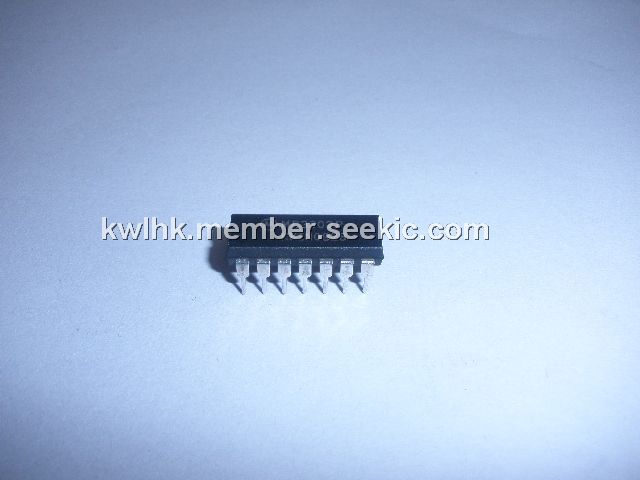

![]() MC3302P |
![]() ON Semiconductor |
![]() Comparator ICs 3-36V Qud Comparator |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MC3302PG |
![]() ON Semiconductor |
![]() Comparator ICs 3-36V Qud Comparator Commercial Temp |
![]() Data Sheet |
![]()
|
|
