Product Summary

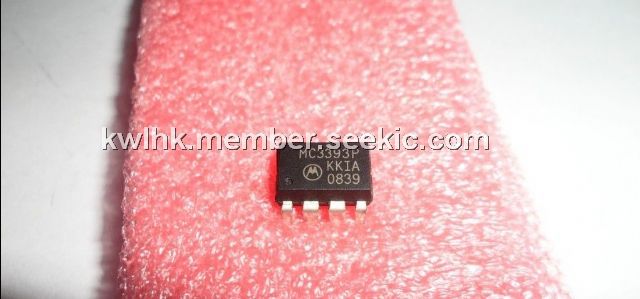

The MC3393P is a digital microcircuit.

Features

MC3393P Technical Characteristics: (1)Operating temp range: -40.0 to 85.0 deg celsius; (2)Storage temp range: -65.0 to 150.0 deg celsius; (3)Features provided: monolithic; (4)Inclosure material: plastic; (5)Inclosure configuration: dual-in-line; (6)Body width: 0.260 inches maximum; (7)Body height: 0.155 inches maximum; (8)Output logic form: transistor-transistor logic; (9)Input circuit pattern: dual 2 input; (10)Design function and quantity: 2 scaler; (11)Terminal surface treatment: solder; (12)Voltage rating and type per characteristic: 6.0 volts maximum power source; (13)Terminal type and quantity: 8 printed circuit.
