Product Summary
The MC74HC393AFEL is a dual 4−stage binary ripple counter. The MC74HC393AFEL inputs are compatible with standard CMOS outputs; with pullup resistors, the MC74HC393AFEL is compatible with LSTTL outputs. Internal flip−flops are triggered by high−to−low transitions of the clock input. Reset for the counters is asynchronous and active−high. State changes of the Q outputs do not occur simultaneously because of internal ripple delays. Therefore, decoded output signals are subject to decoding spikes and should not be used as clocks or as strobes except when gated with the Clock of the HC393A.
Parametrics
MC74HC393AFEL absolute maximum ratings: (1)VCC DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)Vin DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (3)Vout DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (4)Iin DC Input Current, per Pin: 20 mA; (5)Iout DC Output Current, per Pin: 25 mA; (6)ICC DC Supply Current, VCC and GND Pins: 50 mA; (7)PD Power Dissipation in Still Air: 750 mW; (8)Tstg Storage Temperature: -65 to + 150°C; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260°C.
Features
MC74HC393AFEL features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 A; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 236 FETs or 59 Equivalent Gates; (8)Pb−Free Packages are Available.

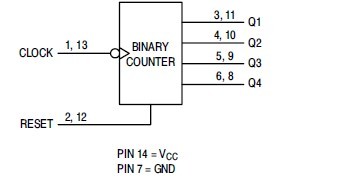

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC393AFEL |
ON Semiconductor |
Counter Shift Registers 2-6V Dual 4-Stage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC393AFELG |
ON Semiconductor |
Counter Shift Registers 2-6V Dual 4-Stage Binary |
Data Sheet |
|
|
||||||||||||
