Product Summary

The MGSF1P02ELT1 is a power MOSFET. It can be used in dc-dc converters and power management in portable and battery powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.

Parametrics

MGSF1P02ELT1 absolute maximum ratings: (1)Drain-to-Source Voltage: 20 V; (2)Gate–to–Source Voltage – Continuous: +/-8.0 V; (3)Drain Current Continuous @ TA = 25℃: 750 mA; (4)Drain Current Pulsed Drain Current @ TA = 25℃: 2000 mA; (5)Total Power Dissipation: 400 mW; (6)Operating and Storage Temperature: -55 to 150°C; (7)Thermal Resistance – Junction–to–Ambient: 300 °C/W; (8)Maximum Lead Temperature for Soldering: 260 °C.

Features

MGSF1P02ELT1 features: (1)Temperature sensing; (2)5 positive voltage inputs; (3)2 op amps for negative voltage monitoring; (4)3 fan speed monitoring inputs; (5)Input for additional temperature sensors; (6)Chassis Intrusion Detector input; (7)WATCHDOG comparison of all monitored values; (8)POST code storage RAM; (9)ISA and I2C. Serial Bus interfaces.

Diagrams

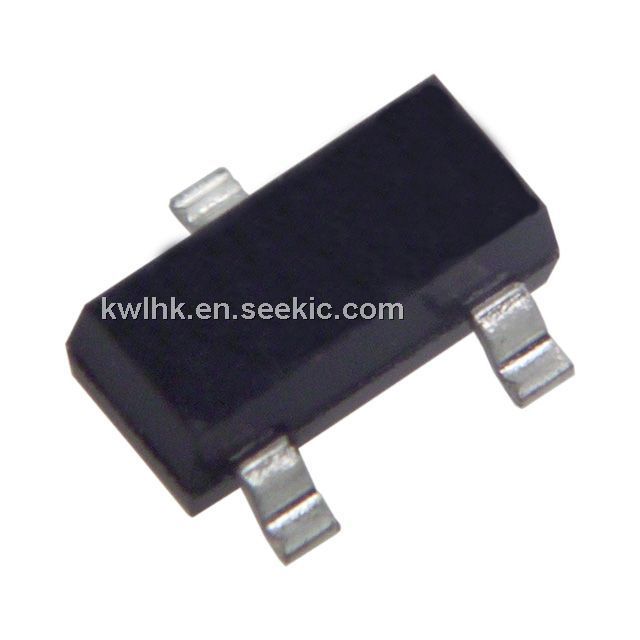

MGSF1P02ELT1 dimension figure
