Product Summary
The MM74HCT245WMX-N 3-STATE bi-directional buffer utilizes advanced silicon-gate CMOS technology and is intended for two-way asynchronous communication between data buses. It has high drive current outputs which enable high speed operation even when driving large bus capacitances. This circuit of MM74HCT245WMX-N possesses the low power consumption of CMOS circuitry, yet has speeds comparable to low power Schottky TTL circuits. The MM74HCT245WMX-N is TTL input compatible and can drive up to 15 LS-TTL loads, and all inputs are protected from damage due to static discharge by diodes to VCC and ground.
Parametrics
MM74HCT245WMX-N absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current: ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW; (9)S.O. Package only: 500 mW; (10)Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
MM74HCT245WMX-N features: (1)TTL input compatible; (2)3-STATE outputs for connection to system busses; (3)High output drive current: 6 mA (min); (4)High speed: 16 ns typical propagation delay; (5)Low power: 80 PA (74HCT Series).

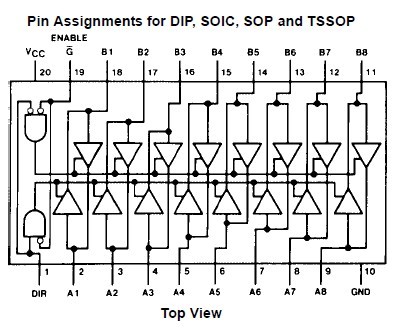

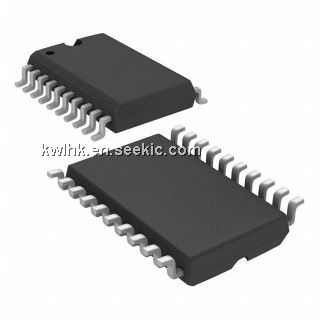

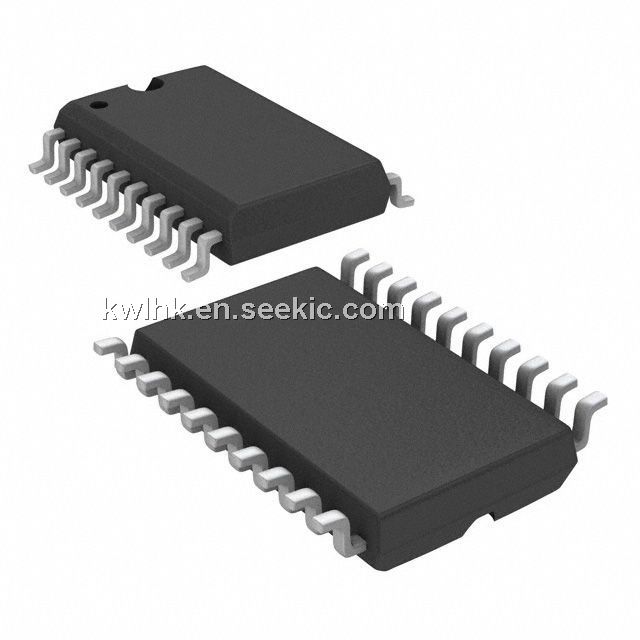

Diagrams
