MM74HCT374WMX

MM74HCT374WMX, flop, 7.0V, 20 mA, 1 μA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: MM74HCT374WMX

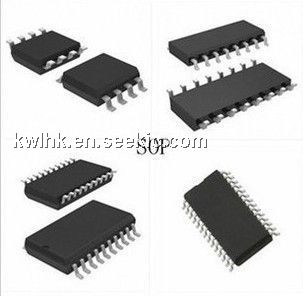

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:MM74HCT374WMX
US $1.00 - 3.00
Quantity:

piece

Product Summary

The MM74HCT374WMX is an Octal D-type flip flop. It provides the inherent benefits of low power consumption and wide power supply range, but are LS-TTL input and output characteristic & pin-out compatible. The MM74HCT374WMX is capable of driving 15 LS-TTL loads. All inputs are protected from damage due to static discharge by internal diodes to VCC and ground. The MM74HCT374WMX is a positive edge triggered flip-flop. Data at the D inputs, meeting the setup and hold time requirements, are transferred to the Q outputs on positive going transitions of the CLOCK (CK) input.

Parametrics

MM74HCT374WMX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW, S.O. Package only 500 mW; (9)Lead Temperature (TL)(Soldering 10 seconds): 260℃.

Features

MM74HCT374WMX features: (1)TTL input characteristic compatible; (2)Typical propagation delay: 20 ns; (3)Low input current: 1 μA maximum; (4)Low quiescent current: 80 μA maximum; (5)Compatible with bus-oriented systems; (6)Output drive capability: 15 LS-TTL loads.
