Product Summary

The MT1104 is a standard T-1 led lamp.

Parametrics

MT1104 absolute maximum ratings: (1)forward current(IF): 30mA; (2)reverse voltage (VR): 5V; (3)power dissipation (PD): 85mW; (4)operating temperature (Topr): -25~+85°C; (5)storage temperature (Tstg): -25~+100°C.

Features

MT1104 features: (1)Excellent on/off contrasts; (2)Solid state reliability; (3)Choice of diffused or color clear lens; (4)Other colors/materials available; (5)Can be packaged on tape in a reel or in a box.

Diagrams

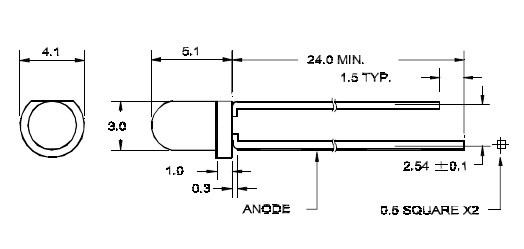

MT1104 pin connection
