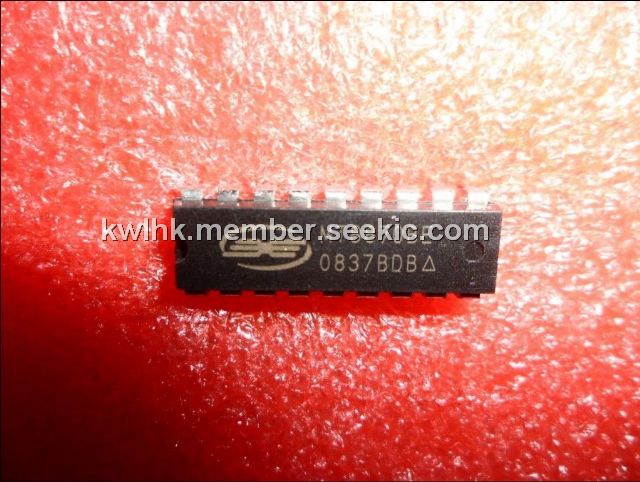

Product Summary
The MT8870BE is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder of the MT8870BE uses digital counting techniques to detect and decode all 16 DTMF tonepairs into a 4-bit code. The applications of the MT8870BE include: Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1), Paging systems, Repeater systems/mobile radio, Credit card systems, Remote control, Personal computers, Telephone answering machine.
Parametrics
MT8870BE absolute maximum ratings: (1)DC Power Supply Voltage VDD: 7 V; (2)2 Voltage on any pin VI: VSS-0.3 to VDD+0.3 V; (3)3 Current at any pin (other than supply) II: 10 mA; (4)4 Storage temperature TSTG: -65 to +150 ℃; (5)5 Package power dissipation PD: 500 mW.
Features
MT8870BE features: (1)Complete DTMF Receiver; (2)Low power consumption; (3)Internal gain setting amplifier; (4)Adjustable guard time; (5)Central office quality; (6)Power-down mode; (7)Inhibit mode; (8)Backward compatible with MT8870C/MT8870C-1.

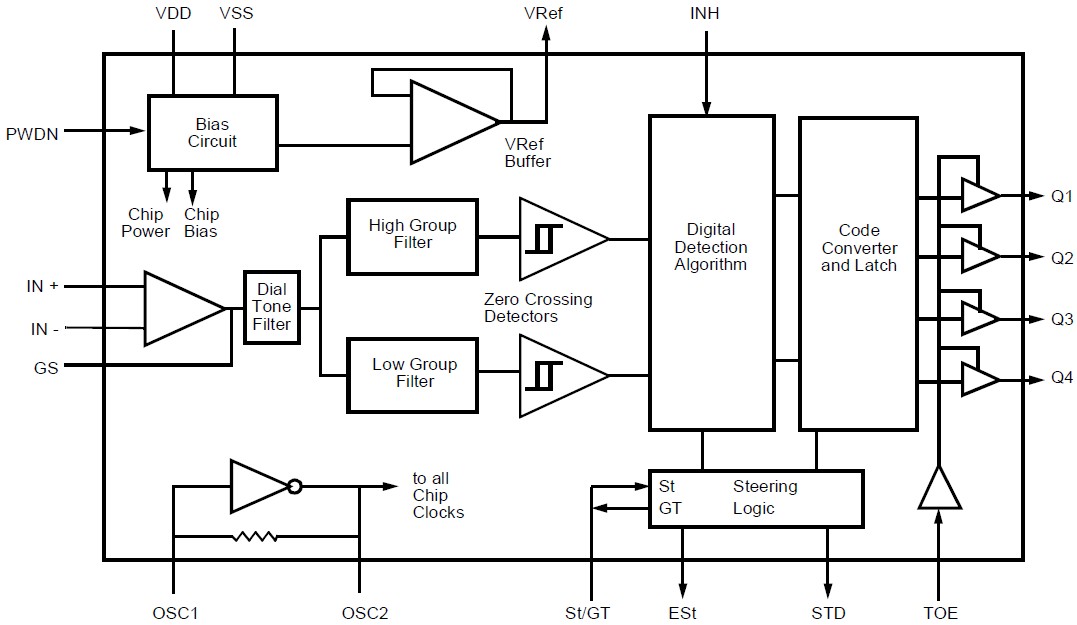

Diagrams
![]() |
