Product Summary
The OP07AZ.883 is an ultralow offset voltage operational amplifier. It is obtained by trimming at the wafer stage.These low offset voltages generally eliminate any need for external nulling.The OP07AZ.883 also features low input bias current and high open-loop gain. The low offsets and high open-loop gain make the device particularly useful for high-gain instrumentation applications. The wide input voltage range of ±13V minimum combined with high CMRR of 110dB and high input impedace provides high accuracy in the noninverting circuit configuration. The OP07AZ.883 is available in five standard performance grades. It is specified for operation over the full military range of -55℃ to +125℃.
Parametrics
OP07AZ.883 absolute maximum ratings: (1)supply voltage: ±22V; (2)Differential input voltage: ±30V; (3)input voltage: ±22V; (4)output short circuit duration: indefinite; (5)storage tempreture range, J, RC and Z packages: -65℃ to +150℃; (6)operating tempreture range: -55℃ to +125℃; (7)lead tempreture: +300℃; (8)junction tempreture(Tj): +150℃.
Features
OP07AZ.883 features: (1)low Vos: 25μA MAX; (2)Low Vos/drift: 0.6μV/℃ MAX; (3)ultra stable vs time: 1.0μV/month Max; (4)low noise: 0.6μ Vp-p Max; (5)wide input voltage range: ±14V; (6)wide supply voltage range: ±3V to ±18V; (7)fits 725, 108A/308, 741, AD510 sockets; (8)125℃ temperature testes dice.

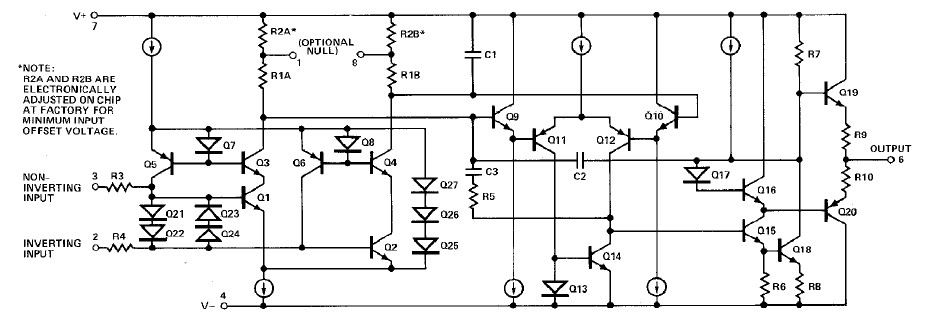

Diagrams
 |
