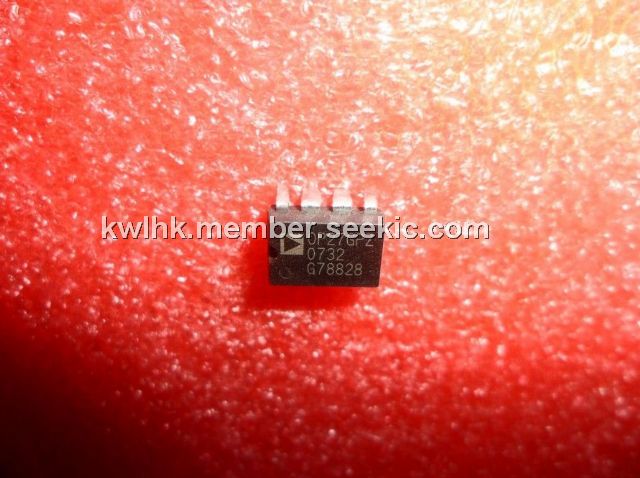

OP27GPZ

precision operational amplifier, DIP, ±22 V, ±25 mA, Low noise, High speed

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~50.00

PartNumber:: OP27GPZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:OP27GPZ
US $0.10 - 50.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

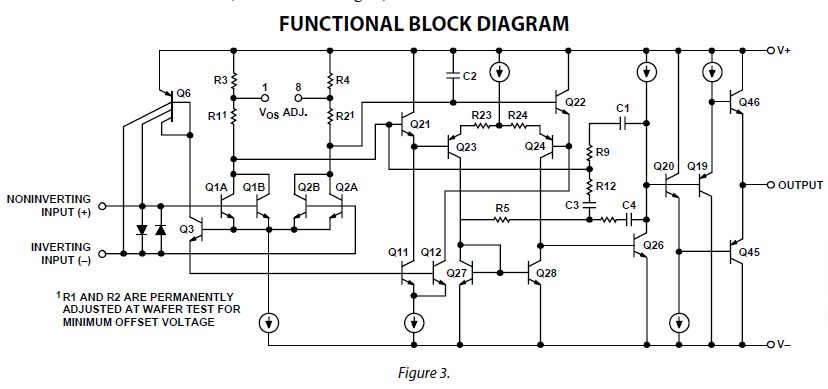

The OP27GPZ precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise. Offsets down to 25 μV and maximum drift of 0.6 μV/℃ make the OP27G ideal for precision instrumentation applications. Exceptionally low noise, en = 3.5 nV/√Hz, at 10 Hz, a low 1/f noise corner frequency of 2.7 Hz, and high gain (1.8 million), allow accurate high-gain amplification of low-level signals. A gain-bandwidth product of the OP27GPZ of 8 MHz and a 2.8 V/μs slew rate provide excellent dynamic accuracy in high speed, data-acquisition systems. A low input bias current of ±10 nA is achieved by use of a bias current cancellation circuit. Over the military temperature range, the OP27GPZ typically holds IB and IOS to ±20nA and 15nA, respectively.

Parametrics

OP27GPZ absolute maximum ratings: (1)Supply Voltage ±22 V; (2)Input Voltage ±22 V; (3)Output Short-Circuit Duration Indefinite; (4)Differential Input Voltage ±0.7 V; (5)Differential Input Current ±25 mA; (6)Storage Temperature Range -65℃ to +150℃; (7)Lead Temperature Range (Soldering, 60 sec) 300℃; (8)Junction Temperature -65℃ to +150℃.

Features

OP27GPZ features: (1)Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/√Hz; (2)Low drift: 0.2 μV/℃; (3)High speed: 2.8 V/μs slew rate, 8 MHz gain bandwidth; (4)Low VOS: 10 μV; (5)Excellent CMRR: 126 dB at VCM of ±11 V; (6)High open-loop gain: 1.8 million; (7)Fits OP07, 5534A sockets; (8)Available in die form.
