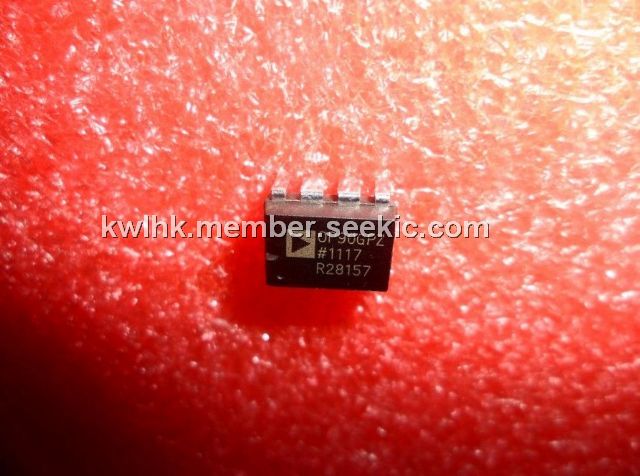

Product Summary

The OP90GPZ is a high performance, micropower op amp that operates from a single supply of 1.6 V to 36 V or from dual supplies of ±0.8 V to ±18 V. The input voltage range includes the negative rail allowing the OP90GPZ to accommodate input signals down to ground in a single-supply operation. The low offset voltage and high gain offered by the device bring precision performance to micropower applications. The minimal voltage and current requirements of the OP90GPZ suit it for battery and solar powered applications, such as portable instruments, remote sensors, and satellites.

Parametrics

OP90GPZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Differential Input Voltage: [(V–) – 20 V] to [(V+) + 20 V]; (3)Common-Mode Input Voltage: [(V–) – 20 V] to [(V+) + 20 V]; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range Z Package: –65℃ to +150℃; P Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Junction Temperature (TJ): –65℃ to +150℃; (8)Lead Temperature (Soldering 60 sec): 300℃.

Features

OP90GPZ features: (1)Single/Dual Supply Operation: 1.6 V to 36 V, ±0.8 V to ±18 V; (2)True Single-Supply Operation; Input and Output Voltage Ranges Include Ground; (3)Low Supply Current: 20 μA Max; (4)High Output Drive: 5 mA Min; (5)Low Input Offset Voltage: 150 μV Max; (6)High Open-Loop Gain: 700 V/mV Min; (7)Outstanding PSRR: 5.6 μV/V Max; (8)Standard 741 Pinout with Nulling to V–.

Diagrams

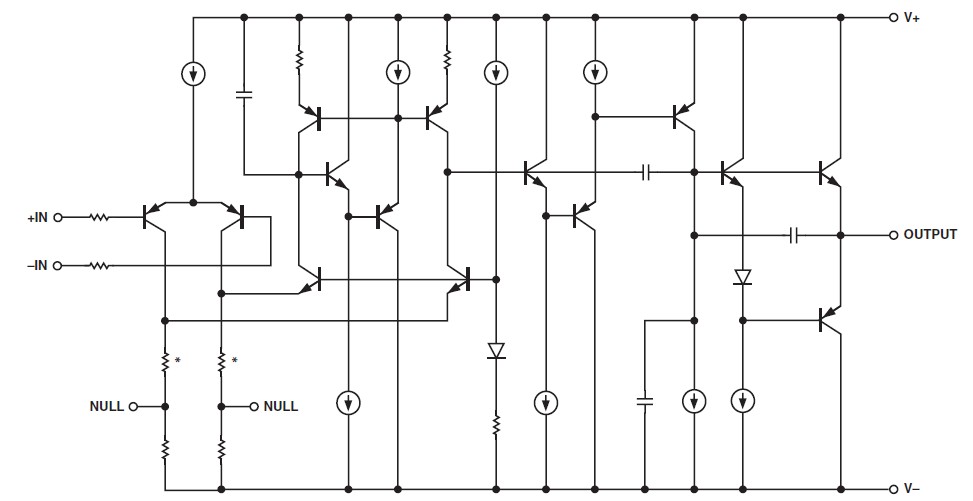

OP90GPZ diagram
