Product Summary
The OPA2604 is a dual, FET-input operational amplifier designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance.

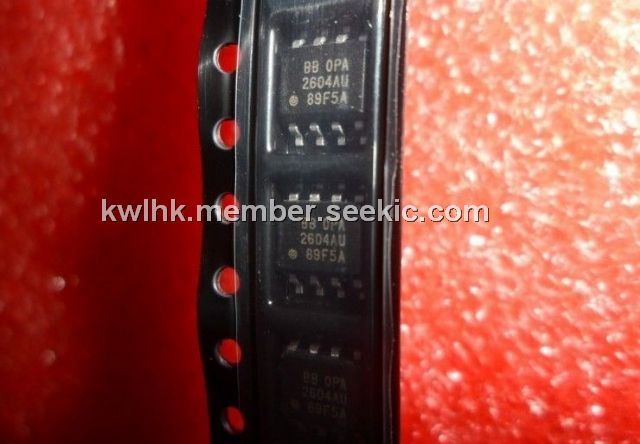

The OPA2604 is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the –25°C to +85°C temperature range.
Parametrics
The absolute maximum ratings of OPA2604AU are
(1)Power Supply Voltage:±25V;
(2)Input Voltage:(V–)–1V to (V+)+1V;
(3)Output Short Circuit to Ground:Continuous;
(4)Operating Temperature:–40°C to +100°C;
(5)Storage Temperature:–40°C to +125°C;
(6)Junction Temperature:+150°C;
(7)Lead Temperature (soldering, 10s) AP:+300°C;
(8)Lead Temperature (soldering, 3s) AU:+260°C
Features
The features of OPA2604AU can be summarized as
(1)LOW DISTORTION: 0.0003% at 1kHz;
(2)LOW NOISE: 10nV/√Hz;
(3)HIGH SLEW RATE: 25V/μs;
(4)WIDE GAIN-BANDWIDTH: 20MHz;
(5)UNITY-GAIN STABLE;
(6)WIDE SUPPLY RANGE: V S = ±4.5 to ±24V;
(7)DRIVES: 600 Ω LOADS
Diagrams
<DIV><IMG alt="OPA2604AU Block Diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201272020177495.jpg" border=0></DIV>
